UniLic series is an intelligent LED control system, including LED sending cards/controllers, receiving cards, 2-in-1 LED controllers and LED video processors. The system is designed to deliver unparalleled performance for LED display in various applications, such as control rooms, meeting rooms, events, and exhibitions.

Fine Grayscale Adjustment

Utilizing UniLic's unique PWM grayscale adjustment algorithm, each level of grayscale can be delicately presented and smoothly transitioned from low gray to high gray.

Point-by-Point Calibration

Using a high-precision correction algorithm to eliminate chromatic aberration, the brightness and color are consistent from low gray to high gray. Through UniLic's proprietary YKFD (Yukit fast download) technology, calibration data can be delivered quickly to avoid long waits.

4K60HDR

UniLic supports 4K@60 HDR10/HLG10 uncompressed transmission, exchange and processing, which can be expanded to 12bit to achieve ultra-high definition signal transmission, super color depth processing, and high dynamic range display, allowing the LED video wall to present finer picture details and richer image colors.

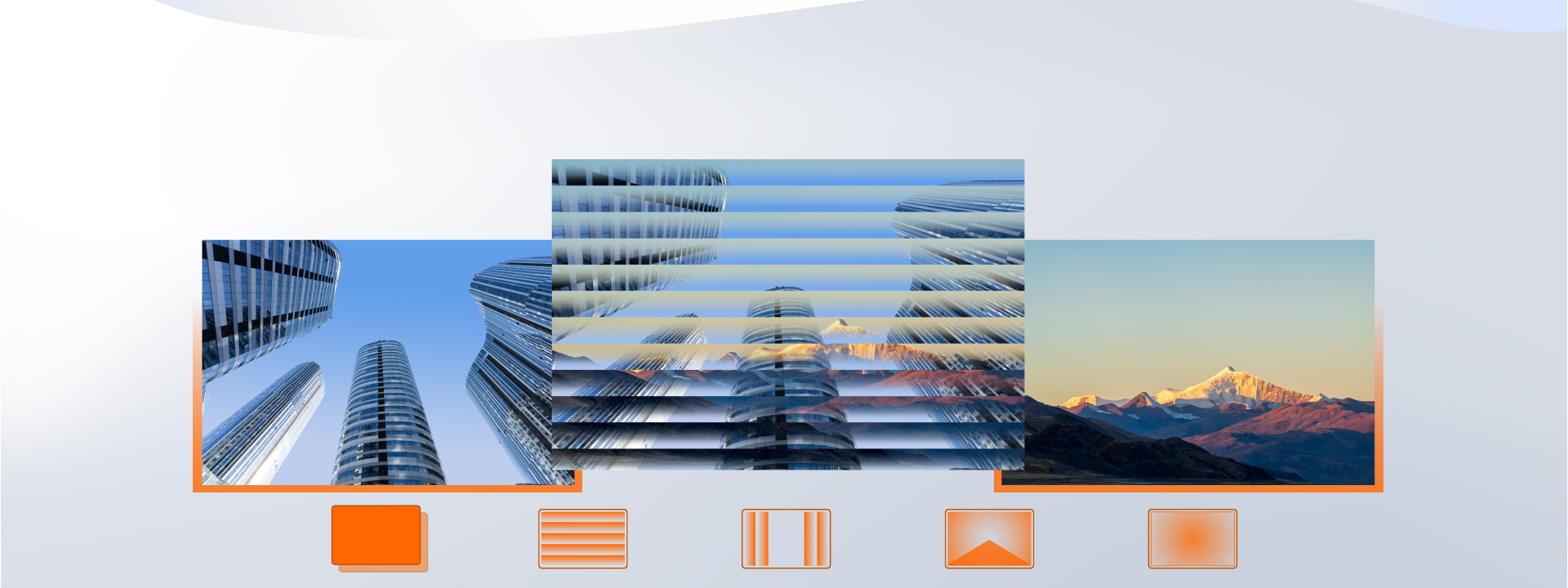

Various Transition Effects

When the LED video wall switches signal sources, the UniLic system can offer various special switching effects such as fade in and out, blinds, curtains, edge feathering, shapes, etc., to deliver a more distinctive display.

Unified Control of Multiple Screens

A single processor can be used to control multiple sets of screens of different sizes and shapes,
simplifying system construction and reducing usage costs.

Arbitrary Layout with Multiple Layers

It supports up to 6 layers of display on a single screen, with any size and position layout, and is flexible and changeable. Supports screen logos for easier identification. The scene can be flexibly configured through three calling methods: manual, timed, and laser pointer. It can be recalled with one click as needed, and the LED video wall layout can be quickly switched.

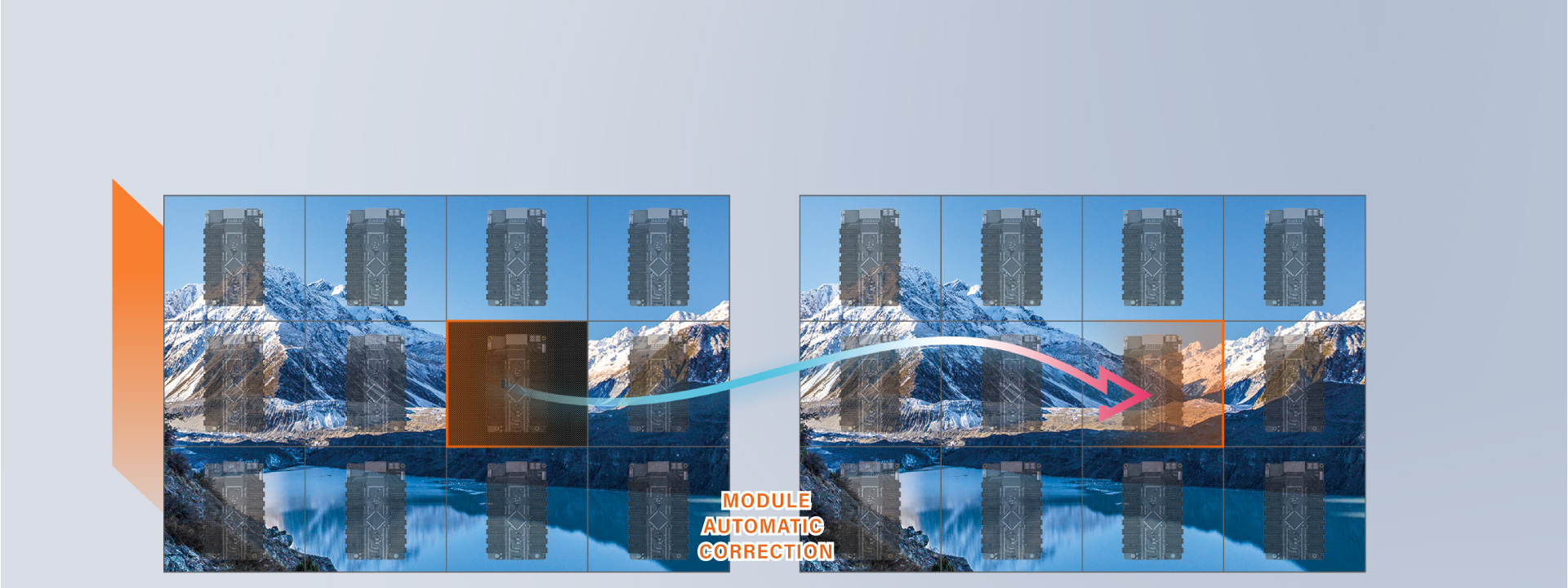

Module Automatic Correction

When replacing the LED video wall module, the receiving card can automatically apply the correction coefficient without reconfiguration, which is simple and fast.

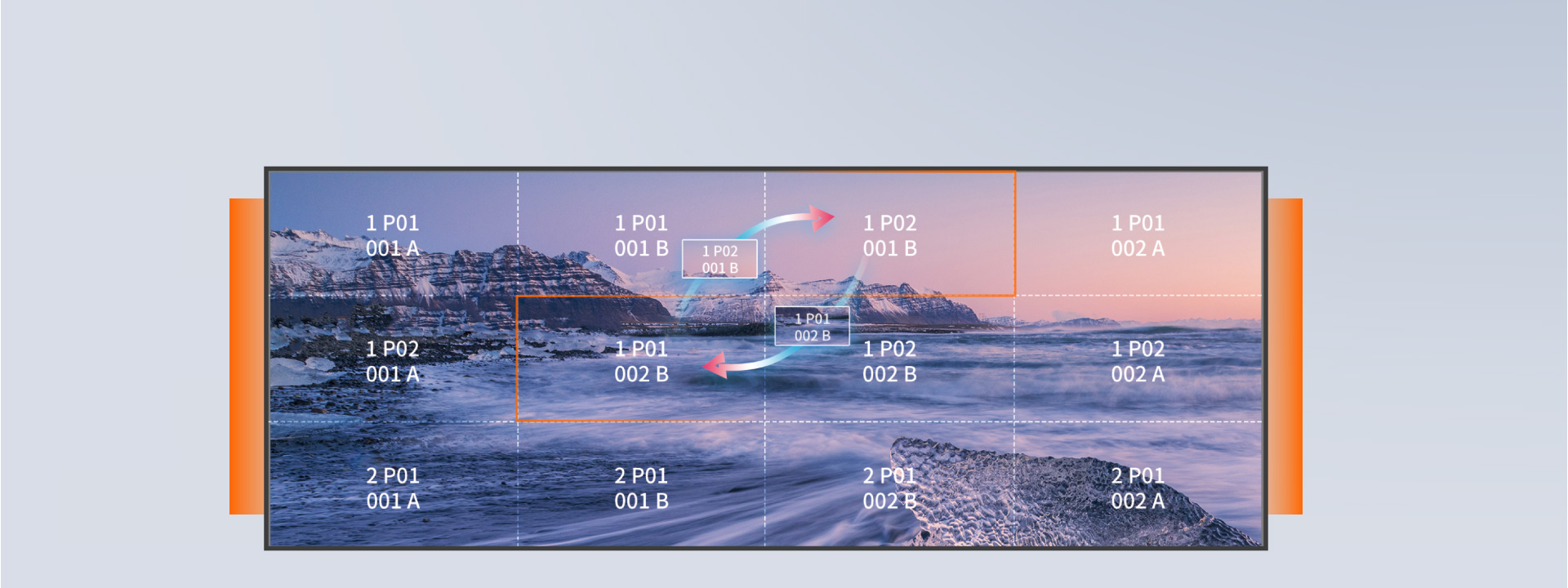

Intelligent Mapping

By employing the YKIM (Yukit Intelligent Mapping) intelligent screen linking algorithm, the receiving cards can get rid of the fixed installation sequence and can be arranged arbitrarily. The arrangement route is clearly displayed in the system, enabling rapid implementation and maintenance.

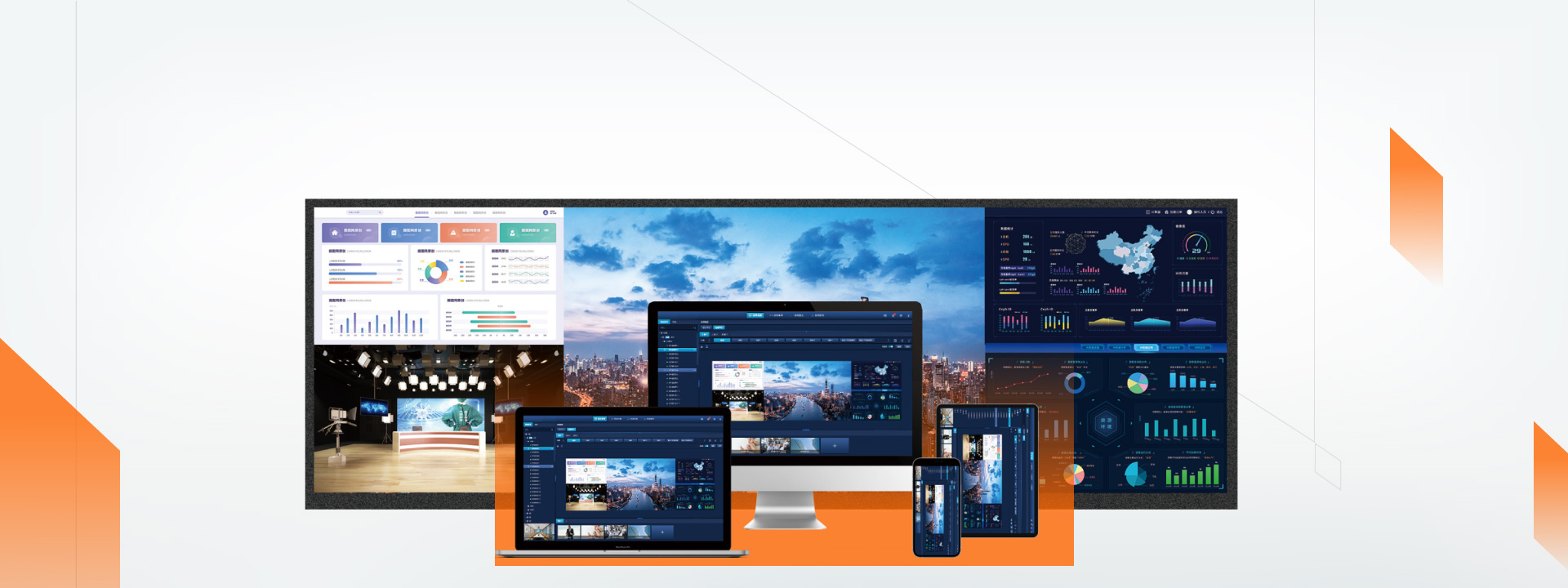

Multi-Terminal Visual Control

The control interface visually displays the video wall layout, the real-time image of the signal source, and the scene window layout, making it easier for users to accurately locate the signal and grasp the signal display status.

LED Display Management

You can set the attribute parameters of the LED screen on the UniLic control system, and conveniently control the on/off of the screen, parameter adjustment of color temperature, brightness, and mode, as well as monitoring and maintenance of screen temperature, humidity, and operating status.

APPLICATION



Features LT102 LT104 LT106 LT220
Load Capacity 1.3M 2.3M 2.3M 10.4M
Max
Width/Height		 Width 4096
Height 4096		 Width 4096
Height 4096		 Width 4096
Height 4096		 Width 16384
Height 8192
Interface DVI x 1(+Loop)
HDMI x 1(+Loop)
AUDIO x 1		 Default:
HDMI2.0 x 1(+Loop)
DVI x 4
SDI-3G x 1(+Loop)
Options:
SDI-12G(+Loop) or DP1.2
Max Resolution 1920 x 1200@60Hz 1920 x 1200@60Hz 1920 x 1200@60Hz 4K x 2K@60Hz
Ethernet 2 4 6 20
Fiber ○ ○ ○ 4
3D ○ ○ ○ ●
HDR ○ ○ ○ ●
Stepless Zoom ○ ○ ○ ●
Presets ● ● ● ●
Input Label
 ○ ○ ○ ●
Multiple LED Group ● ● ● ●
Cascading ● ●  ● ●



Features LR-E Series
 LR-M Series
 LR-H Series
E508S E508 E512 E516 E520 M202L M202 H201L

H201
Load 512 x 256 512 x 256 512 x 512 512 x 512 512 x 512 512 x 384 512 x 512 512 x 384 512 x 512
Interface HUB75 HUB320 120pin High-Density Connector 200pin DDR2 SODIMM
Fine Grayscale Adjustment ● ● ● ● ● ● ● ● ●
90 Degree Rotation ● ● ● ● ● ● ● ● ●
Color Management ● ● ● ● ● ● ● ● ●
Pixel-Level Correction Brightness Correction Pixel-Level Correction of Brightness and Chroma
Brightness and Chroma ● ● ● ● ● ● ● ● ●
Indep Gamma Adjustment ● ● ● ● ● ● ● ● ●
Multiple Default Gamma Curve ● ● ● ● ● ● ● ● ●
Auto Calibration ○ ○ ○ ○ ○ ● ● ● ●
Gamma Calibration ● ● ● ● ● ● ● ● ●
Curve Edit ● ● ● ● ● ● ● ● ●
Enable/Disable Calibration ● ● ● ● ● ● ● ● ●
3D ● ● ● ● ● ● ● ● ●



Features LC1102 LC1105 LC1306 LC1308 LC1310 LC2620
Layers 1 1 3 3 3 6
Ethernet 2 5 6 8 10 20
Fiber ○ ○ 2 2 2 4
Max Load Pixels 1.30M 2.30M 3.90M 5.20M 6.50M 10.40M
Max Width/Height 3840 x 2160 3840 x 2160 8192 x 8192 8192 x 8192 8192 x 8192 16384 x 8192
Audio DVI x 1
HDMI x 1
VGA x 1
 CVBS x 1
USB x 1
AUDIO x 1		 Default:
HDMI2.0 x 1
HDMI1.3 x 1(+Loop)
HDMI1.3 x 1
USB x 1
[DVI x 1, or optional port]
Options：
[SDI-12G(+Loop) or DP1.2]		 Default:
HDMI2.0 x 1(+Loop)
DVI x 4
SDI-3G x 1(+Loop)
Options:
[SDI-12G(+Loop) or DP1.2]
4K@60 ○ ○ ● ● ● ●
Stepless Zoom ● ● ● ● ● ●
Presets ● ● ● ● ● ●
Transitions ● ● ○ ○ ○ ○
Multiple Video
Wall Groups		 ○ ○ ● ● ● ●
Scrolling Text ○ ○ ● ● ● ●
Full Backup ● ● ● ● ● ●
Live Preview ● ● ● ● ● ●
Multi Control Methods ● ● ● ● ● ●



Chassis Control Card Backup PSU Input Slots Output Slots
3U ○ 1 8 2
4U ● 2 8 3
6U ● 2 14 5
8U ● 2 15 10
14U ● 4 21 18
26U ● 4 42 36



Signals
DVI DP VGA
DVI「Dual-link」 DP「4K」 Audio
HDMI DP「4K60」 IP（H.265）
HDMI「4K」 HDBaseT IP（H.265 4K）
HDMI「4K60」 HDBaseT「4K」 IP（VC2）
SDI Fiber LED（Ethernet x 16 + Fiber x 2）
12G SDI Fiber「4K」 LED（Ethernet x 20）

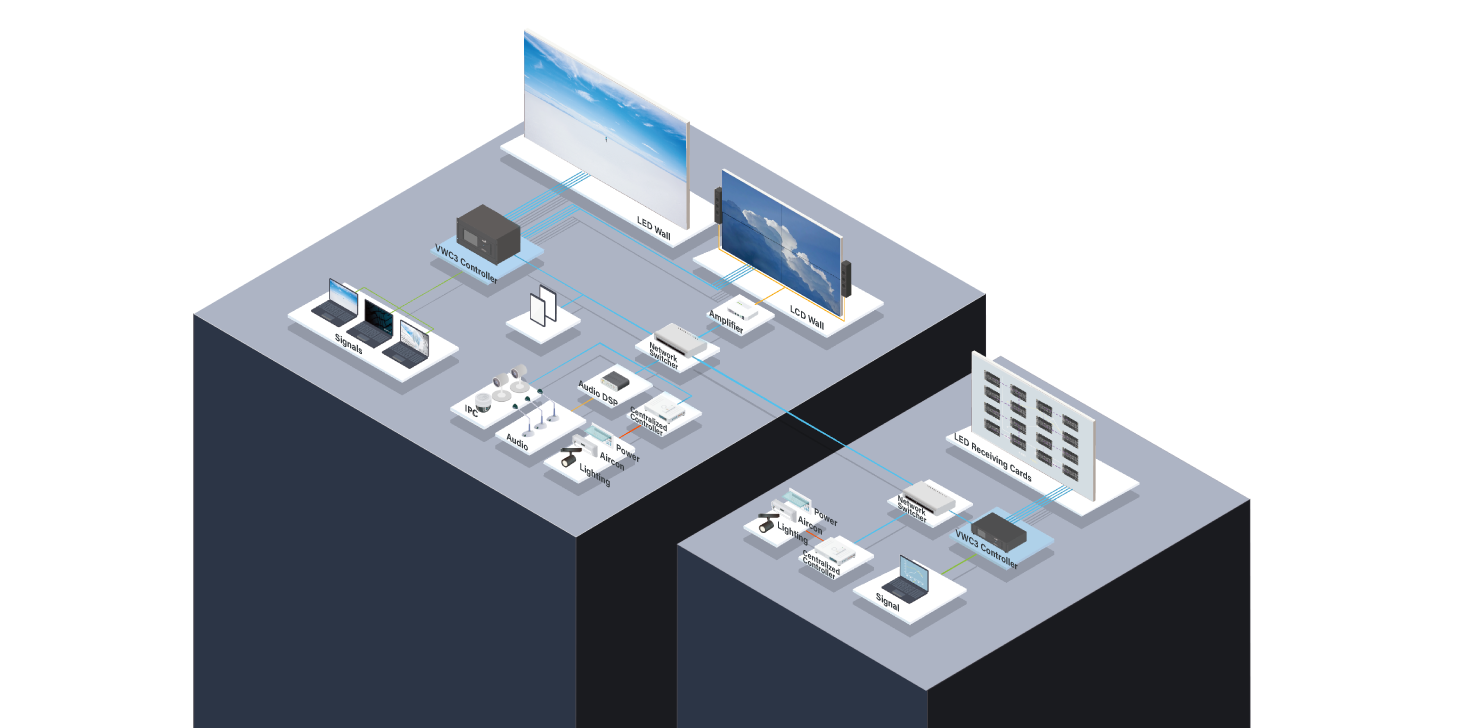

DIAGRAM
