4K60 Hybrid Matrix Switcher
Seamless switching with video wall capabilities
Seamless switching with video wall capabilities
4K60 4:4:4 processing, up to 160x 160
Seamless switching without black intervals
Built-in video wall capabilities
Embedded and de-embedded audio switching supported
HMX2-E delivers seamless switching experience of 4K60 sources without any black intervals for quality presentations.

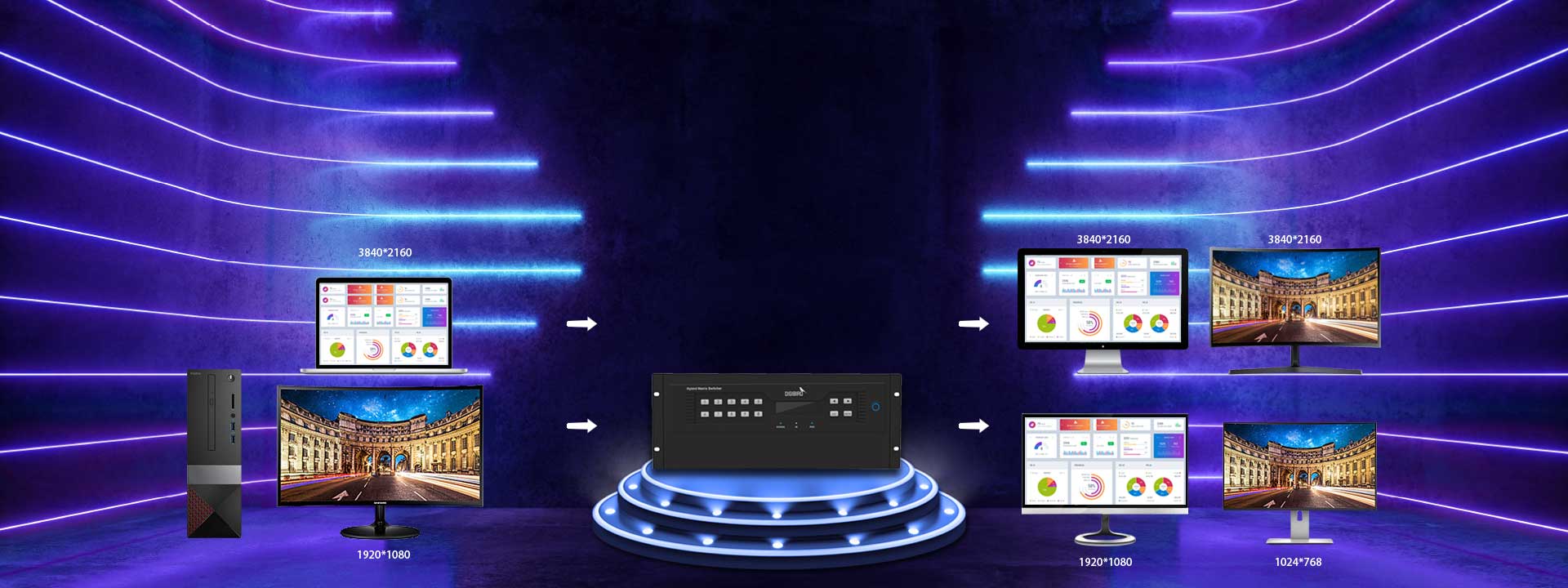

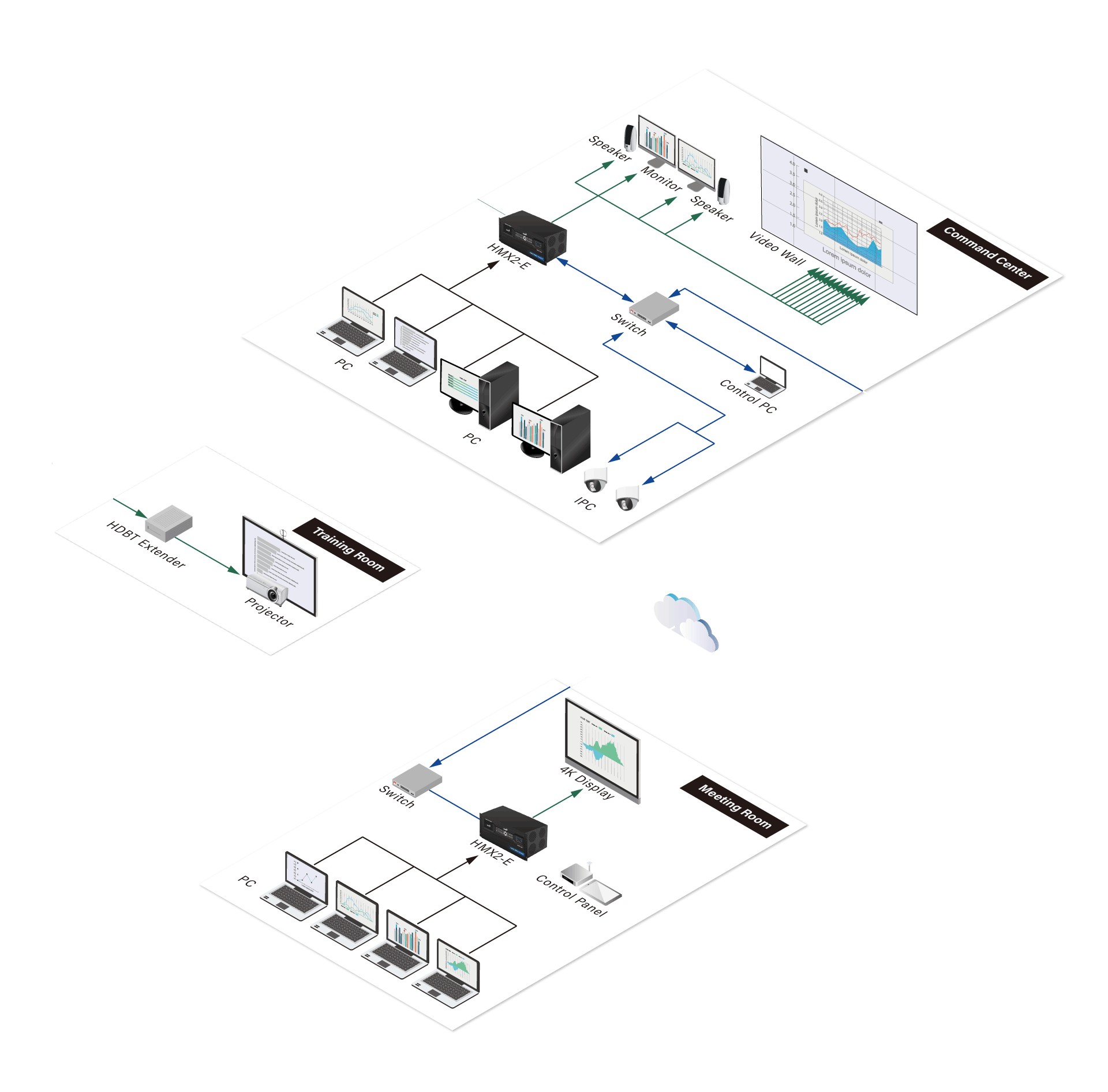

The HMX2-E will auto adjust output resolution to best fit display device when switching difference sources. It offers the flexibility for applications requiring multiple display devices.
With Integrated video wall function, in addition to independent switching among input sources and displays, HMX2-E can be applied to power video wall as well supporting 2x layers per display.
Processing is performed via FPGA chips, it rules out the possibilities of system shut down and virus penetration. The device will product itself from any damage when there is unexpected outage. In addition, redundant PSU will enhance reliability by automatically take over whenever there are failed PSU.
| Order Code: | Size: | Description: | Input Cards: | Output Cards: | Control Cards: | PSUs (Default+ Redundant): |
| DB-HMX2-E-FR2 | 2U | 2U Chassis, up to 4x input cards, 4x output cards. | 4 | 4 | 1 | 1+0 |
| DB-HMX2-E-FR4 | 4U | 4U Chassis, up to 9x input cards, 9x output cards. | 9 | 9 | 1 | 1+0 |
| DB-HMX2-E-FR9 | 9U | 9U Chassis, up to 18x input cards, 18x output cards. | 18 | 18 | 1 | 1+1 |
| DB-HMX2-E-FR19 | 19U | 19U Chassis, up to 40x input cards, 40x output cards. | 40 | 40 | 1 | 1+3 |
| DB-HMX2-E-FR34 | 34U | 34U Chassis, up to 80x input cards, 80x output cards. | 80 | 80 | 1 | 1+3 |
| Input Cards | ||||||
| Order Code: | Port Type: | Description: | Ports Qty. | Signal Type: | Max. Resolution: | |
| DB-HMX2-E-IC-DVI2 | DVI | 2 channels DVI-D input card. | 2 | DVI | 1920*1200@60 | |
| DB-HMX2-E-IC-HDMI2 | HDMI | 2 channels HDMI input card. | 2 | HDMI | 1920*1200@60 | |
| DB-HMX2-E-IC-SDI2 | SDI | 2 channels SDI input card. | 2 | SDI | 1920*1080@60 | |
| DB-HMX2-E-IC-VGA2-M | VGA | 2 channels VGA input card. | 2 | VGA | 1920*1200@60 | |
| DB-HMX2-E-IC-YPbPr2-M | YPbPr | 2 channels YPbPr input card. | 2 | YPbPr | 1920*1080@60 | |
| DB-HMX2-E-IC-CVBS2-M | CVBS | 2 channels CVBS input card. | 2 | CVBS | 720*480/720*576 | |
| DB-HMX2-E-IC-4KHDMI2 | 4KHDMI | 2 channels HDMI 4K input card. | 2 | 4KHDMI | 4096*2160@30 4088*4088@15 |
|
| DB-HMX2-E-IC-U4KHDMI1 | U4KHDMI | 1 channel HDMI 4K60 input card. | 1 | U4KHDMI | 4096*2160@60 | |
| DB-HMX2-E-IC-4KDP2 | 4KDP | 2 channels DP 4K input card. | 2 | 4KDP | 4096*2160@30 4088*4088@15 |
|
| DB-HMX2-E-IC-4KHDbaseT2 | 4KHDBaseT | 2 channels HDBaseT 4K input card. | 2 | 4KHDBaseT | 3840*2160@30 | |
| DB-HMX2-E-IC-4KIP1 | 4KIP | 1 Channel 4K-IP decoding card | 1 | 4KIP | 3840*2160@30 | |
| DB-HMX2-E-IC-4KOPTS2 | 4KFiber | 2 channels Fiber 4K input card. | 2 | 4KFiber | 3840*2160@30 | |
| Output Cards | ||||||
| Order Code: | Port Type: | Description: | Ports Qty. | Signal Type: | Max. Resolution: | |
| DB-HMX2-E-OC-DVI2 | DVI | 2 channels DVI output card. | 2 | DVI | 1920*1080@60 | |
| DB-HMX2-E-OC-HDMI2 | HDMI | 2 channels HDMI output card. | 2 | HDMI | 1920*1080@60 | |
| DB-HMX2-E-OC-4KHDMI2 | 4KHDMI | 2 channels HDMI 4K output card. | 2 | 4KHDMI | 3840*2160@30 | |
| DB-HMX2-E-OC-U4KHDMI1 | U4KHDMI | 2 channels HDMI 4K60 output card. | 1 | U4KHDMI | 4096*2160@60 | |
| DB-HMX2-E-OC-4KDP2 | 4KDP | 2 channels DP 4K output card. | 2 | 4KDP | 3840*2160@30 | |
| DB-HMX2-E-OC-4KOPTS2 | 4KFiber | 2 channels Fiber 4K output card. | 2 | 4KFiber | 3840*2160@30 | |
| DB-HMX2-E-OC-4KIP1 | 4KIP | 2 channels 4K iP decoding card. | 1 | 4KIP | 3840*2160@30 | |
| DB-HMX2-E-OC-4KPV | IP | Preview Card | 1 | IP | – | |
| DB-HMX2-E-OC-4KHDMI2-M | 4KHDMI | 2 channels HDMI 4K output card. | 2 | 4KHDMI | 4096*2160@30 | |
| DB-HMX2-E-OC-HDMI2-M | HDMI | 2 channels HDMI output card. | 2 | HDMI | 2560*1440@60 | |
| DB-HMX2-E-OC-DVI2-M | DVI | 2 channels DVI output card. | 2 | DVI | 2560*1440@60 | |
| DB-HMX2-E-OC-VGA2-M | VGA | 2 channels VGA output card. | 2 | VGA | 1920*1080@60 | |
| DB-HMX2-E-OC-YPBPR2-M | YPBPR | 2 channels YPbPr output card. | 2 | YPBPR | 1920*1080@60 | |
| DB-HMX2-E-OC-CVBS2-M | CVBS | 2 channels CVBS output card. | 2 | CVBS | 720*480/720*576 | |
| DB-HMX2-E-OC-SDI2-M | SDI | 2 channels SDI output card. | 2 | SDI | 1920*1080@60 | |
| DB-HMX2-E-OC-4KHDBaseT2-M | 4KHDBaseT | 2 channels HDbaseT 4K output card. | 2 | 4KHDBaseT | 3840*2160@30 | |
HMX2-E Brochure
