Network Distributed Matrix Switcher & Video Wall Controller
All-in-one IP-based control room solutions
All-in-one IP-based control room solutions

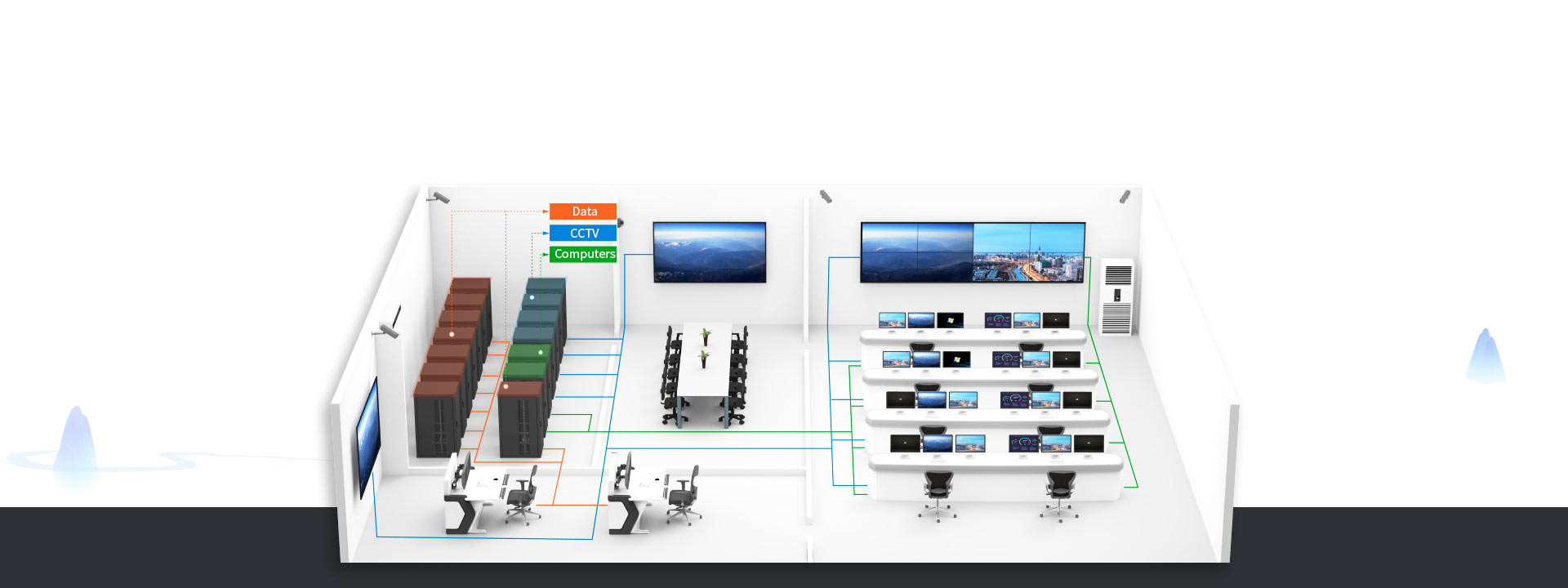

UniStream-Br is IP based AV&KVM solution which integrates KVM extender, matrix switcher and video wall controller and distributes stream over 1G network.
Applied H.265 codec, UniStream-B breaks constrains of network bandwidth and enables deployment of large-scale project.
UniStream-Br is IP based AV&KVM solution which integrates KVM extender, matrix switcher and video wall controller and distributes stream over 1G network.
Applied H.265 codec, UniStream-B breaks constrains of network bandwidth and enables deployment of large-scale project.

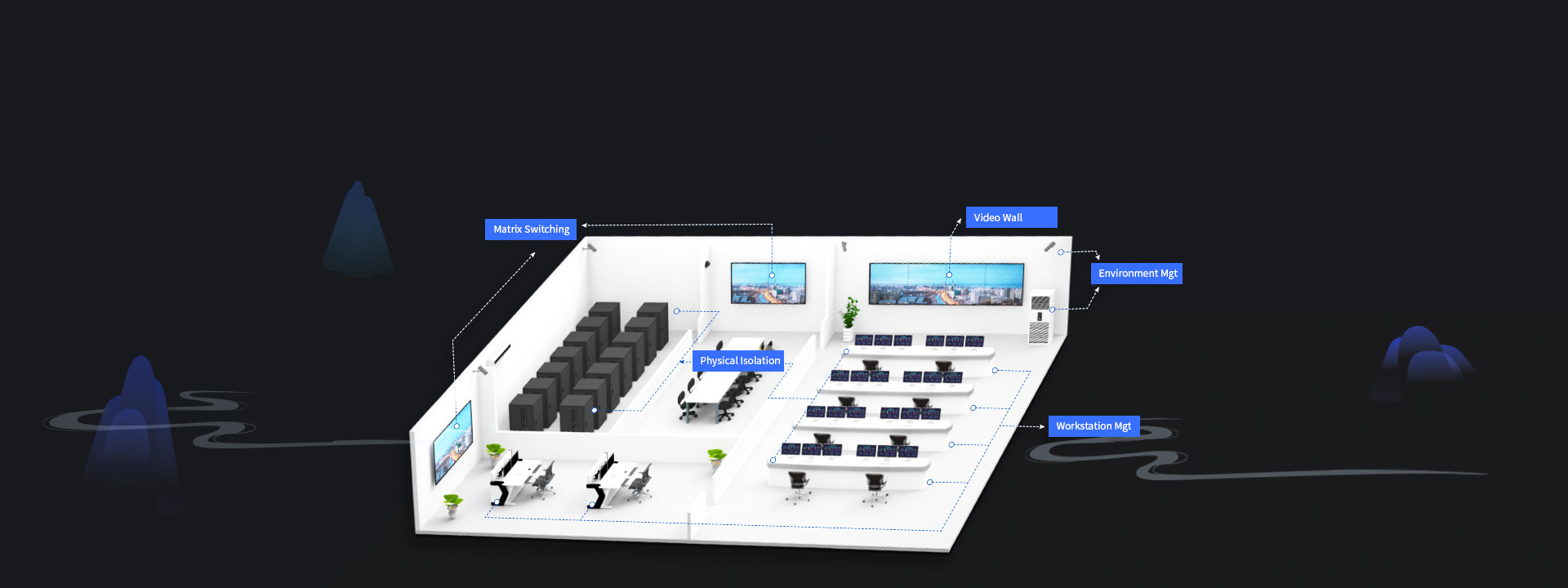

To simplify your AV system, UniStrean itself can manage AV&KVM distribution, switching and video wall display without need of 3rd party devices such as KVM switcher, matrix and video wall controller.

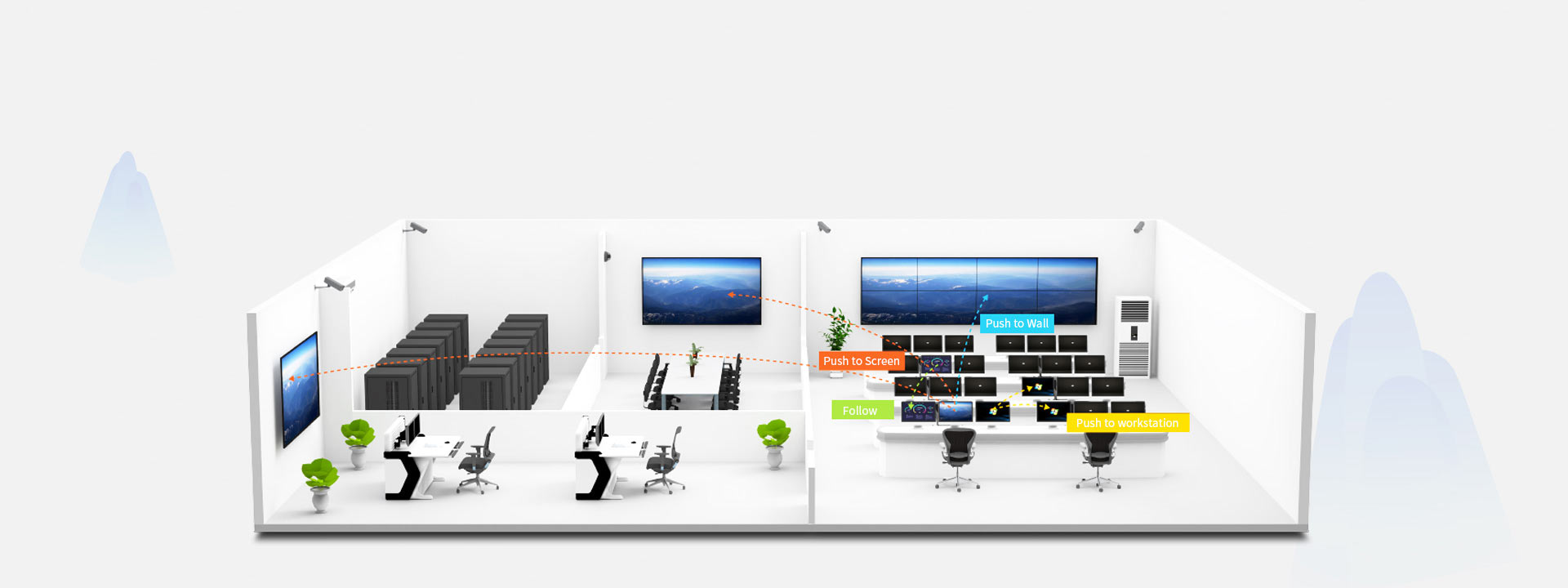

User collaboration is required more often to improve efficiency as operators and their mangers might be stationed at different locations. UniStream allows operators voluntarily share desktop and KVM access to others for collaboration. It also allows managers supervise their staff through monitoring staff’s desktop without prior notice.

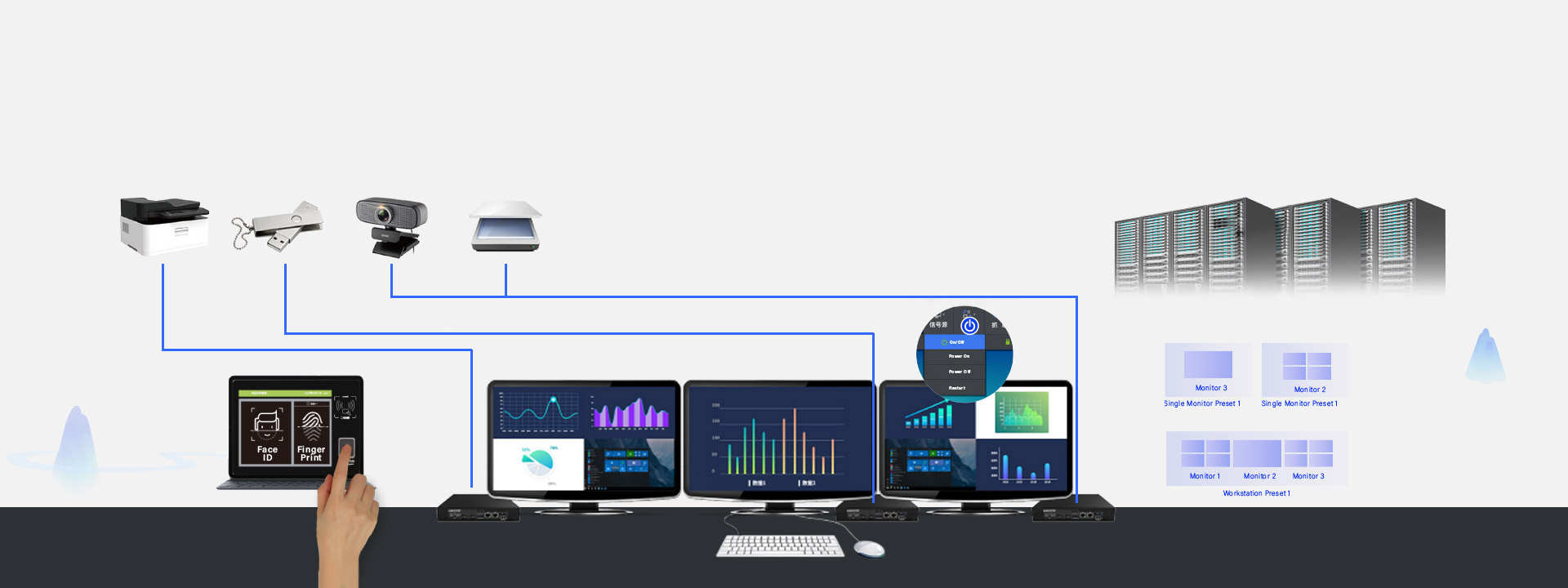

UniStream offers a smart method to manager user account. Log in over Face ID and Finger print is supported.
| KVM & USB2.0 Endpoints | ||||
| Order Code: | Port Type: | Description: | Resolution: | |
| DB-UniStream-Br-HDMI-PCB1-KUTXC | HDMI | HDMI KVM Transmitter Card, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-HDMI-PCB1-KURXC | HDMI | HDMI KVM Receiver Card, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-KUTXC | 4K HDMI | 4K HDMI KVM Transmitter Card, supports USB2.0 | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-KURXC | 4K HDMI | 4K HDMI KVM Receiver Card, supports USB2.0 | 3840x 2160/30Hz | |
| DB-UniStream-Br-DVII-PCB1-KUTXC | DVI-I | DVI KVM Transmitter Card, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-DVII-PCB1-KURXC | DVI-I | DVI KVM Receiver Card, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-KUTXC | DP | DP KVM Transmitter Card, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-KURXC | DP | DP KVM Receiver Card, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KDP-PCB1-KUTXC | 4K DP | 4K DP KVM Transmitter Card, supports USB2.0 | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KDP-PCB1-KURXC | 4K DP | 4K DP KVM Receiver Card, supports USB2.0 | 3840x 2160/30Hz | |
| DB-UniStream-Br-HDMI-PCB1-KUTX | HDMI | HDMI KVM Transmitter, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-HDMI-PCB1-KURX | HDMI | HDMI KVM Receiver, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-KUTX | 4K HDMI | 4K HDMI KVM Transmitter, supports USB2.0 | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-KURX | 4K HDMI | 4K HDMI KVM Receiver, supports USB2.0 | 3840x 2160/30Hz | |
| DB-UniStream-Br-DVII-PCB1-KUTX | DVI-I | DVI KVM Transmitter, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-DVII-PCB1-KURX | DVI-I | DVI KVM Receiver, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-KUTX | DP | DP KVM Transmitter, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-KURX | DP | DP KVM Receiver, supports USB2.0 | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KDP-PCB1-KUTX | 4K DP | 4K DP KVM Transmitter, supports USB2.0 | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KDP-PCB1-KURX | 4K DP | 4K DP KVM Receiver, supports USB2.0 | 3840x 2160/30Hz | |
| DB-UniStream-Br-4K60HDMI-DP-PCB1-KURX | 4K60 HDMI/DP | 4K60 DP/HDMI KVM Receiver, supports USB2.0 | 3840x 2160/60Hz | |
| KVM Endpoints | ||||
| Order Code: | Port Type: | Description: | Resolution: | |
| DB-UniStream-Br-HDMI-PCB1-KMTXC | HDMI | HDMI KVM Transmitter Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-HDMI-PCB1-KMRXC | HDMI | HDMI KVM Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-KMTXC | 4K HDMI | 4K HDMI KVM Transmitter Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-KMRXC | 4K HDMI | 4K HDMI KVM Receiver Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-DVII-PCB1-KMTXC | DVI-I | DVI KVM Transmitter Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-DVII-PCB1-KMRXC | DVI-I | DVI KVM Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-KMTXC | DP | DP KVM Transmitter Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-KMRXC | DP | DP KVM Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KDP-PCB1-KMTXC | 4K DP | 4K DP KVM Transmitter Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KDP-PCB1-KMRXC | 4K DP | 4K DP KVM Receiver Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-HDMI-PCB1-KMTX | HDMI | HDMI KVM Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Br-HDMI-PCB1-KMRX | HDMI | HDMI KVM Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-KMTX | 4K HDMI | 4K HDMI KVM Transmitter | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-KMRX | 4K HDMI | 4K HDMI KVM Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Br-DVII-PCB1-KMTX | DVI-I | DVI KVM Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Br-DVII-PCB1-KMRX | DVI-I | DVI KVM Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-KMTX | DP | DP KVM Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-KMRX | DP | DP KVM Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KDP-PCB1-KMTX | 4K DP | 4K DP KVM Transmitter | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KDP-PCB1-KMRX | 4K DP | 4K DP KVM Receiver | 3840x 2160/30Hz | |
| Audio Video Endpoints | ||||
| Order Code: | Port Type: | Description: | Resolution: | |
| DB-UniStream-Br-HDMI-PCB1-VATXC | HDMI | HDMI Transmitter Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-HDMI-PCB1-VARXC | HDMI | HDMI Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-VATXC | 4K HDMI | 4K HDMI Transmitter Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-VARXC | 4K HDMI | 4K HDMI Receiver Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-DVII-PCB1-VATXC | DVI-I | DVI Transmitter Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-DVII-PCB1-VARXC | DVI-I | DVI Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-VATXC | DP | DP Transmitter Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-VARXC | DP | DP Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KDP-PCB1-VATXC | 4K DP | 4K DP Transmitter Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KDP-PCB1-VARXC | 4K DP | 4K DP Receiver Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-SDI-PCB1-VATXC | SDI | SDI Transmitter Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-SDI-PCB1-VARXC | SDI | SDI Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-HDMI-PCB1-VATX | HDMI | HDMI Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Br-HDMI-PCB1-VARX | HDMI | HDMI Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-VATX | 4K HDMI | 4K HDMI Transmitter | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-VARX | 4K HDMI | 4K HDMI Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Br-DVII-PCB1-VATX | DVI-I | DVI Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Br-DVII-PCB1-VARX | DVI-I | DVI Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-VATX | DP | DP Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-VARX | DP | DP Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KDP-PCB1-VATX | 4K DP | 4K DP Transmitter | 3840x 2160/30Hz | |
| DB-UniStream-Br-4KDP-PCB1-VARX | 4K DP | 4K DP Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Br-SDI-PCB1-VATX | SDI | SDI Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Br-SDI-PCB1-VARX | SDI | SDI Receiver | 1920x 1080/60Hz | |
| Video Wall Endpoints | ||||
| Order Code: | Port Type: | Description: | Resolution: | |
| DB-UniStream-Br-HDMI-PCB1-VWRXC | HDMI | HDMI Video Wall Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-VWRXC | 4K HDMI | 4K HDMI Video Wall Receiver Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-DVII-PCB1-VWRXC | DVI-I | DVI Video Wall Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-VWRXC | DP | DP Video Wall Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KDP-PCB1-VWRXC | 4K DP | 4K DP Video Wall Receiver Card | 3840x 2160/30Hz | |
| DB-UniStream-Br-HDMI-PCB1-VWRX | HDMI | HDMI Video Wall Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KHDMI-PCB1-VWRX | 4K HDMI | 4K HDMI Video Wall Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Br-DVII-PCB1-VWRX | DVI-I | DVI Video Wall Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Br-DP-PCB1-VWRX | DP | DP Video Wall Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Br-4KDP-PCB1-VWRX | 4K DP | 4K DP Video Wall Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Br-4K60HDMI-DP-PCB1-VWRX |
4K60 DP/HDMI | 4K60 DP/HDMI Video Wall Receiver | 3840x 2160/60Hz | |
| Order Code: | Description: | Optional or Default | ||
| DB-UniStream-B-FR1.5 | 1.5U size chassis, house 4x Tx/Rx Cards | Optional | ||
| Order Code: | Description: | Optional or Default | ||
| DB-DMIS-CP-3000 | 2U Chassis | UniStream Controller, manages up to 100x endpoints and control 3rd party devices | Optional | |
| DB-DMIS-CP3100 | 2U Chassis | UniStream Controller, manages up to 500x endpoints and control 3rd party devices | Optional | |
| DB-DMIS-CP3200 | 2U Chassis | UniStream Control server, manages up to 1000x endpoints and control 3rd party devices | Optional | |
