Dual Stream Guarantees Dual Flexibility and Dual Reliability
Integrated KVM Matrix, Matrix Switcher and Video Wall Controller
Integrated KVM Matrix, Matrix Switcher and Video Wall Controller
UniStream-Tr is a network-distributed AV&KVM system to deliver streams up to 4K/60Hz, YUV 4:4:4, over 1Gbps network.
With combination of light-compression codec and H.264/H.265 codec, it breaks through constrains of system scalability, delivers visual-lossless experiences within local premise, and enables AV&KVM distribution among different locations.
To simplify your AV system, UniStream itself can manage AV&KVM distribution, switching and video wall display without need of 3rd party devices such as KVM switcher, matrix and video wall controller.
User collaboration is required more often to improve efficiency as operators and their mangers might be stationed at different locations. UniStream allows operators voluntarily share desktop and KVM access to others for collaboration. It also allows managers supervise their staff through monitoring staff’s desktop without prior notice.

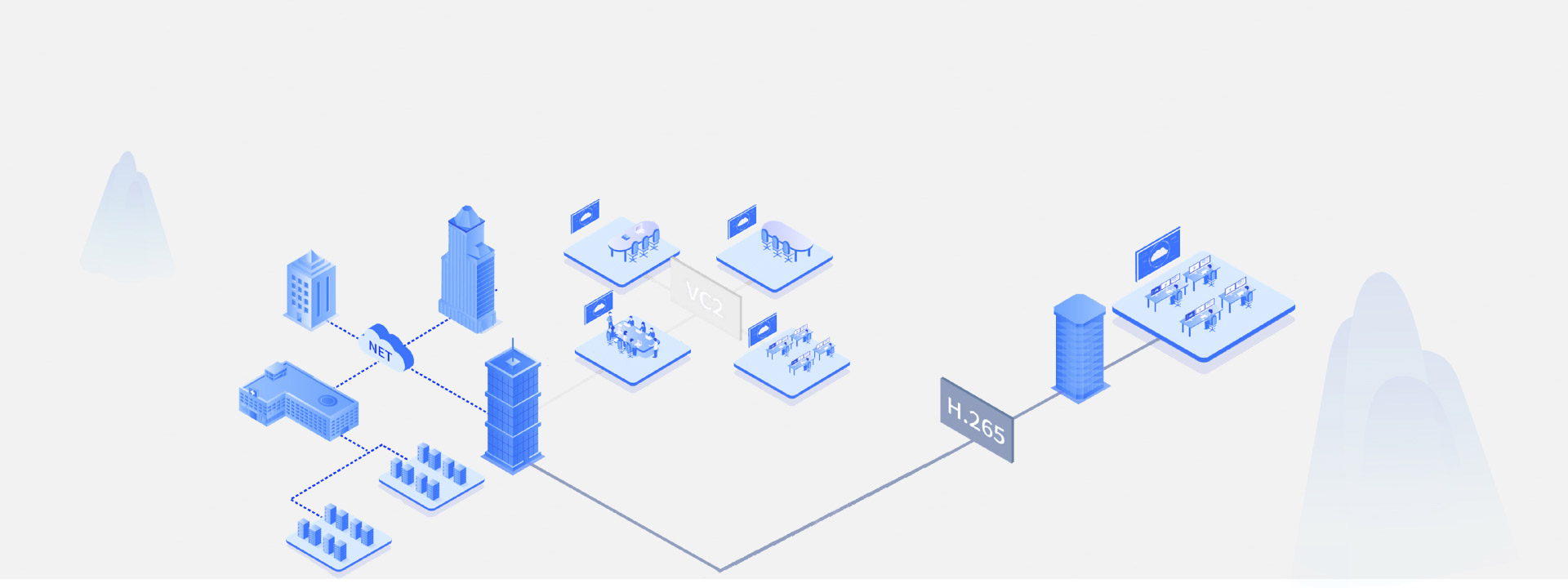

The solution unifies DigiBird self-owned VC2 codec and H.264/265 codec to offer outstanding superiorities over other solutions.
VC2 codec ensures the visual lossless experience and “0” latency within LAN network while H.264/H.65 codec allows AV&KVM distribution at a much lower bandwidth. Furthermore, both codec can work as backup for each other to improve reliability.
UniStream offers a smart method to manager user account. Log in over Face ID and Finger print is supported.
| KVM & USB3.0 Endpoint | ||||
| Order Code: | Port Type: | Description: | Resolution: | |
| DB-UniStream-Tr-HDMI-PT1F1-KUTXC | HDMI | HDMI KVM Transmitter card, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-HDMI-PT2-KURXC | HDMI | HDMI KVM Receiver card, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KHDMI-PT1F1-KUTXC | 4K HDMI | 4K HDMI KVM Transmitter card, supports USB3.0 | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KHDMI-PT2-KURXC | 4K HDMI | 4K HDMI KVM Receiver card, supports USB3.0 | 3840x 2160/30Hz | |
| DB-UniStream-Tr-DVII-PT1F1-KUTXC | DVI-I | DVI KVM Transmitter card, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DVII-PT2-KURXC | DVI-I | DVI KVM Receiver card, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT1F1-KUTXC | DP | DP KVM Transmitter card, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT2-KURXC | DP | DP KVM Receiver card, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KDP-PT1F1-KUTXC | 4K DP | 4K DP KVM Transmitter card, supports USB3.0 | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KDP-PT2-KURXC | 4K DP | 4K DP KVM Receiver card, supports USB3.0 | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4K60HDMI-PT1F1-KUTXC | 4K60 HDMI | 4K60 HDMI KVM Transmitter card, supports USB3.0 | 3840x 2160/60Hz | |
| DB-UniStream-Tr-HDMI-PT1F1-KUTX | HDMI | HDMI KVM Transmitter, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-HDMI-PT2-KURX | HDMI | HDMI KVM Receiver, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KHDMI-PT1F1-KUTX | 4K HDMI | 4K HDMI KVM Transmitter, supports USB3.0 | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KHDMI-PT2-KURX | 4K HDMI | 4K HDMI KVM Receiver, supports USB3.0 | 3840x 2160/30Hz | |
| DB-UniStream-Tr-DVII-PT1F1-KUTX | DVI-I | DVI KVM Transmitter, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DVII-PT2-KURX | DVI-I | DVI KVM Receiver, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT1F1-KUTX | DP | DP KVM Transmitter, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT2-KURX | DP | DP KVM Receiver, supports USB3.0 | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KDP-PT1F1-KUTX | 4K DP | 4K DP KVM Transmitter, supports USB3.0 | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KDP-PT2-KURX | 4K DP | 4K DP KVM Receiver, supports USB3.0 | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4K60HDM-PT1F1-KUTX | 4K60 HDMI | 4K60 HDMI KVM Transmitter, supports USB3.0 | 3840x 2160/60Hz | |
| KVM Endpoints | ||||
| Order Code: | Port Type: | Description: | Resolution: | |
| DB-UniStream-Tr-HDMI-PT1F1-KMTXC | HDMI | HDMI KVM Transmitter card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-HDMI-PT2-KMRXC | HDMI | HDMI KVM Receiver card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KHDMI-PT1F1-KMTXC | 4K HDMI | 4K HDMI KVM Transmitter card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KHDMI-PT2-KMRXC | 4K HDMI | 4K HDMI KVM Receiver card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-DVII-PT1F1-KMTXC | DVI-I | DVI KVM Transmitter card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DVII-PT2-KMRXC | DVI-I | DVI KVM Receiver card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT1F1-KMTXC | DP | DP KVM Transmitter card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT2-KMRXC | DP | DP KVM Receiver card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KDP-PT1F1-KMTXC | 4K DP | 4K DP KVM Transmitter card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KDP-PT2-KMRXC | 4K DP | 4K DP KVM Receiver card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4K60HDMI-PT1F1-KMTXC | 4K60 HDMI | 4K60 HDMI KVM Transmitter card | 3840x 2160/60Hz | |
| DB-UniStream-Tr-HDMI-PT1F1-KMTX | HDMI | HDMI KVM Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Tr-HDMI-PT2-KMRX | HDMI | HDMI KVM Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KHDMI-PT1F1-KMTX | 4K HDMI | 4K HDMI KVM Transmitter | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KHDMI-PT2-KMRX | 4K HDMI | 4K HDMI KVM Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Tr-DVII-PT1F1-KMTX | DVI-I | DVI KVM Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DVII-PT2-KMRX | DVI-I | DVI KVM Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT1F1-KMTX | DP | DP KVM Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT2-KMRX | DP | DP KVM Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KDP-PT1F1-KMTX | 4K DP | 4K DP KVM Transmitter | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KDP-PT2-KMRX | 4K DP | 4K DP KVM Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4K60HDMI-PT1F1-KMTX | 4K60 HDMI | 4K60 HDMI KVM Transmitter | 3840x 2160/60Hz | |
| Audio Video Endpoints | ||||
| Order Code: | Port Type: | Description: | Resolution: | |
| DB-UniStream-Tr-HDMI-PT1F1-VATXC | HDMI | HDMI Transmitter card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-HDMI-PT1-VARXC | HDMI | HDMI Receiver card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KHDMI-PT1F1-VATXC | 4K HDMI | 4K HDMI Transmitter card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KHDMI-PT1-VARXC | 4K HDMI | 4K HDMI Receiver card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-DVII-PT1F1-VATXC | DVI-I | DVI Transmitter card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DVII-PT1-VARXC | DVI-I | DVI Receiver card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT1F1-VATXC | DP | DP Transmitter card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT1-VARXC | DP | DP Receiver card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KDP-PT1F1-VATXC | 4K DP | 4K DP Transmitter card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KDP-PT1-VARXC | 4K DP | 4K DP Receiver card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-SDI-PT1F1-VATXC | SDI | SDI Transmitter Card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-SDI-PT1-VARXC | SDI | SDI Receiver Card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4K60HDMI-PT1F1-VATXC | 4K60 HDMI | 4K60 HDMI Transmitter card | 3840x 2160/60Hz | |
| DB-UniStream-Tr-HDMI-PT1F1-VATX | HDMI | HDMI Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Tr-HDMI-PT1-VARX | HDMI | HDMI Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KHDMI-PT1F1-VATX | 4K HDMI | 4K HDMI Transmitter | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KHDMI-PT1-VARX | 4K HDMI | 4K HDMI Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Tr-DVII-PT1F1-VATX | DVI-I | DVI Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DVII-PT1-VARX | DVI-I | DVI Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT1F1-VATX | DP | DP Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT1-VARX | DP | DP Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KDP-PT1F1-VATX | 4K DP | 4K DP Transmitter | 3840x 2160/30Hz | |
| DB-UniStream-Tr-4KDP-PT1-VARX | 4K DP | 4K DP Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Tr-SDI-PT1F1-VATX | SDI | SDI Transmitter | 1920x 1080/60Hz | |
| DB-UniStream-Tr-SDI-PT1-VARX | SDI | SDI Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4K60HDMI-T1F1-VATX | 4K60 HDMI | 4K60 HDMI Transmitter | 3840x 2160/60Hz | |
| Video Wall Endpoint | ||||
| Order Code: | Port Type: | Description: | Resolution: | |
| DB-UniStream-Tr-HDMI-PT2-VWRXC | HDMI | HDMI Video Wall Receiver card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KHDMI-PT2-VWRXC | 4K HDMI | 4K HDMI Video Wall Receiver card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-DVII-PT2-VWRXC | DVI-I | DVI Video Wall Receiver card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT2-VWRXC | DP | DP Video Wall Receiver card | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KDP-PT2-VWRXC | 4K DP | 4K Video Wall Receiver card | 3840x 2160/30Hz | |
| DB-UniStream-Tr-HDMI-PT2-VWRX | HDMI | HDMI Video Wall Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KHDMI-PT2-VWRX | 4K HDMI | 4K HDMI Video Wall Receiver | 3840x 2160/30Hz | |
| DB-UniStream-Tr-DVII-PT2-VWRX | DVI-I | DVI Video Wall Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-DP-PT2-VWRX | DP | DP Video Wall Receiver | 1920x 1080/60Hz | |
| DB-UniStream-Tr-4KDP-PT2-VWRX | 4K DP | 4K DP Video Wall Receiver | 3840x 2160/30Hz | |
| Order Code: | Description: | Optional or Default | ||
| DB-UniStream-Tr-FR1.5 | 1.5U size chassis, house 4x Tx/Rx cards | Optional | ||
| Order Code: | Description: | Optional or Default | ||
| DB-DMIS-CP-3100 | UniStream Controller, manages up to 200x endpoints and control 3rd party devices | Optional | ||
| DB-DMIS-CP-3200 | UniStream Control server, manages up to 500x endpoints and control 3rd party devices | Optional | ||
| DB-DMIS-CP-3300 | UniStream Control server, manages up to 1000x endpoints and control 3rd party devices | Optional | ||
