HDR 12Bit Video Wall Controller
We Care About Your Visual Experience
We Care About Your Visual Experience

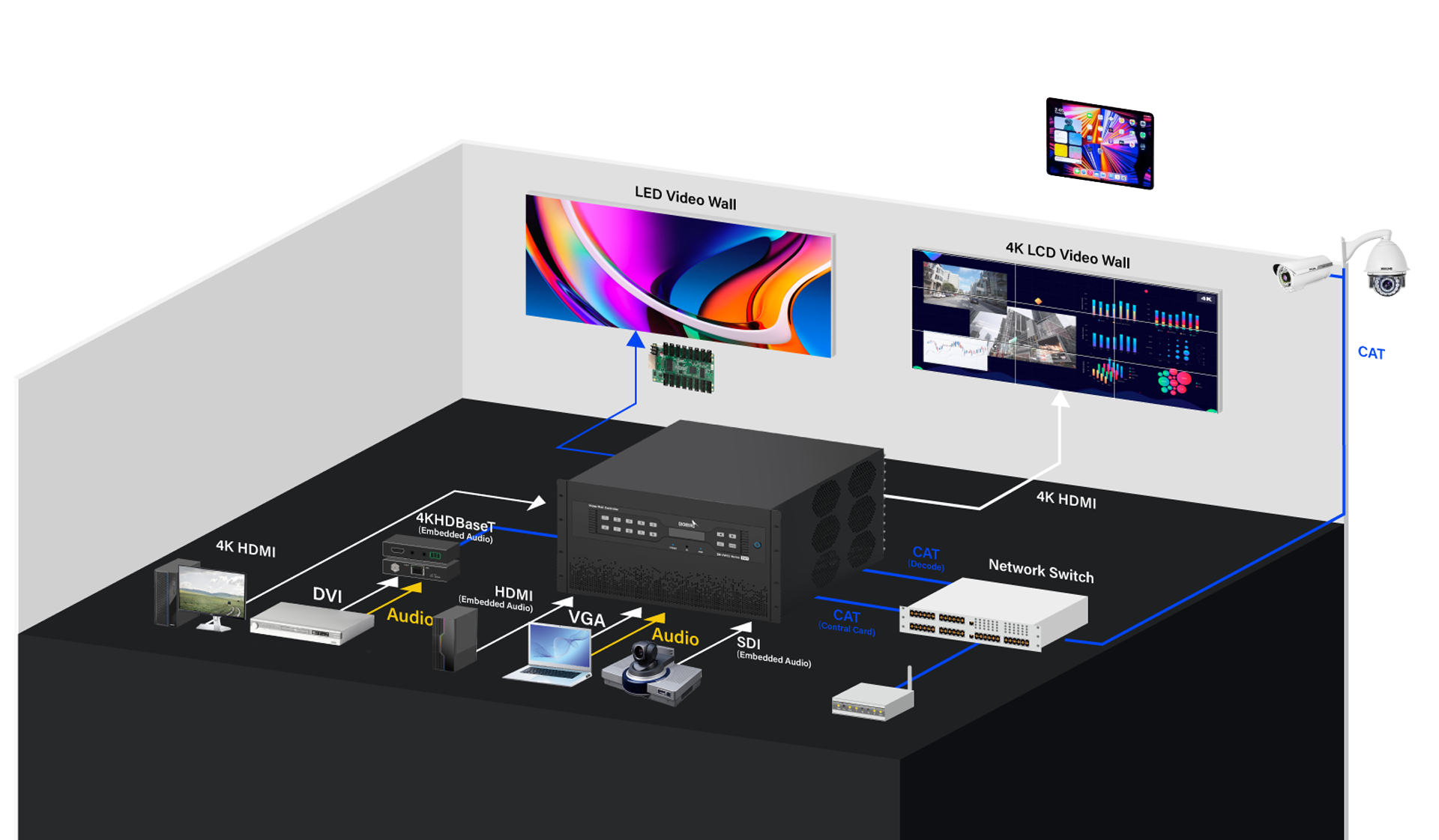

VWC2-TPRO is the most powerful video wall controller ever launched by DigiBird. Adopted 10G bps bandwidth, each channel can process 4K30 source without any compression. Working with LED output card, TPro can directly power LED wall without the need of 3rd party LED sending card.
The controller has adopted a hardware-based design to avoid PC-based vulnerabilities, such as virus, system shut down, blue screen, etc.
FPGA chips are applied to deliver lightning speed processing, you will get real-time responses for any operations of video wall controller.
Video wall operations, such as PIP, overlay, resizing, and roaming, can be conducted easily through web interface of control-PC or installed APP. The GUI allows operator to drag-and-drop to manage video wall display with a live preview function.
All actions, such as LED On/Off, configuration, color temperature, brightness, and display mode, for LED screen management can be conducted through GUI interface. Meanwhile, live status of screen, such as temperature and humidity, can be obtained in real time for the sake of sustainable maintenance.

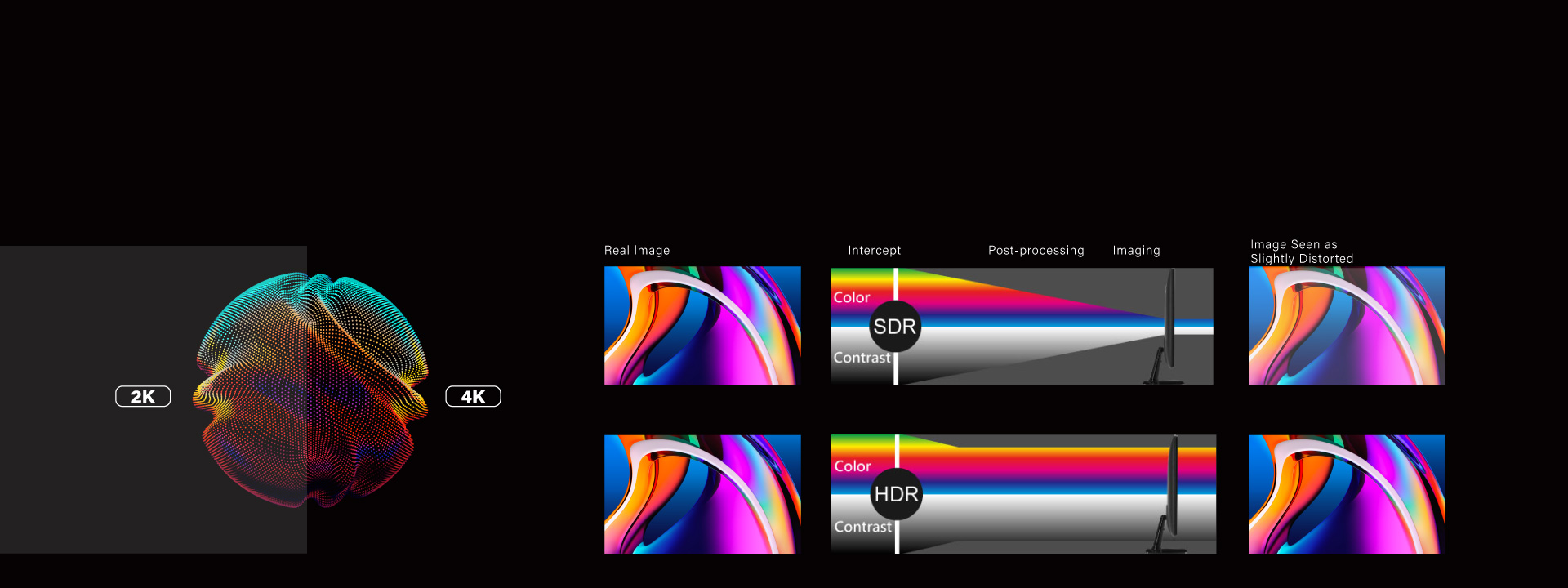

By enabling HDR features,Video wall controller will deliver a more vivid and realistic image with brighter highlights and wider color
Single LED sending card can deliver up to 13 million pixels load capacity, which makes it easy to present 4K60 experience.
Less than 1ms latency from video source to LED display, to guarantee all splendid content will be presented in real time smoothly.
Adopted DigiBird self-owned PWM algorithm, from low to high grayscale, every level can be presented on LED screen precisely and smoothly.
Gamma correction is available to individual R, G, B channel to obtain perfect brightness.
Applied 16-bit precise algorithm to eliminate chromatism and ensure unified display among entire LED screen.

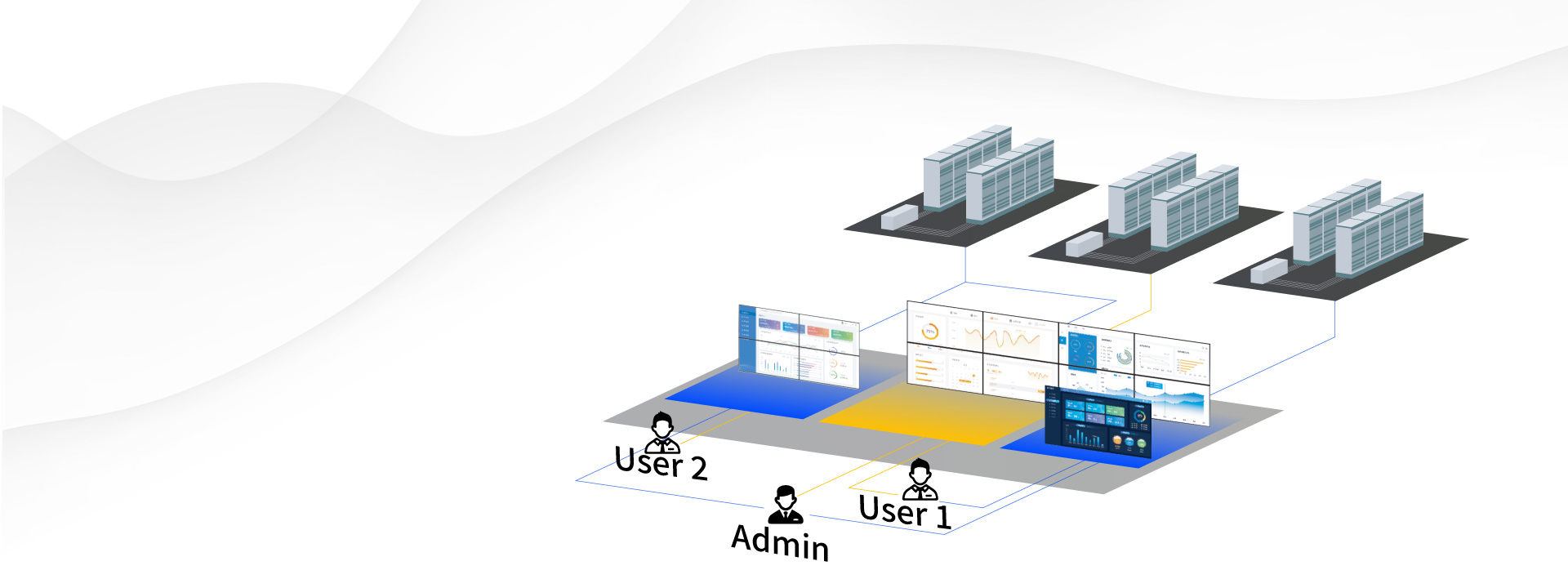

User access management is essential in mission critical cases.
VWC2 allows the administrator to authorize certain
users access for video wall management based on
user role and business, i.e., authorities for specific input,
displays, and functions, etc.
| Chassis | |||||||
| Order Code: | Size: | Description: | Input Cards: | Output Cards: | Control Cards (Default+ Redundant): |
CMC*: | PSUs (Default+ Redundant): |
| DB-VWC2-TP-FR4K | 4U | 4U Chassis, up to 8x input cards, 3x output cards. | 8 | 3 | 1+1 | 1 | 1+1 |
| DB-VWC2-TP-FR6K | 6U | 6U Chassis, up to 14x input cards, 5x output cards. | 14 | 5 | 1+1 | 1 | 1+1 |
| DB-VWC2-TP-FR8K | 8U | 8U Chassis, up to 15x input cards, 10x output cards. | 15 | 10 | 1+1 | 1 | 1+1 |
| DB-VWC2-TP-FR14K | 14U | 14U Chassis, up to 29x input cards, 10x output cards. | 29 | 10 | 1+1 | 1 | 1+3 |
| DB-VWC2-TP-FR19K | 19U | 19U Chassis, up to 37x input cards, 20x output cards. | 37 | 20 | 1+1 | 1 | 1+3 |
| Input Cards | |||||||
| Order Code: | Port Type: | Description: | Ports Qty. | Signal Type: | Resolution: | ||
| DB-VWC2-TP-IC-DVI4 | DVI-I | 4 channels DVI input card. | 4 | DVI-D | Up to 1920×1200/60Hz | ||
| DB-VWC2-TP-IC-SDI4 | BNC | 4 channels SDI input card. | 4 | SDI | Up to 1920×1080/60Hz | ||
| DB-VWC2-TP-IC-VGA4 | VGA | 4 channels VGA input card. | 4 | VGA | Up to 1920×1200/60Hz | ||
| DB-VWC2-TP-IC-HDMI4-HDR | HDMI | 4 channels HDMI input card, 12bit HDR supported | 4 | HDMI1.3 | Up to 1920×1200/60Hz | ||
| DB-VWC2-TP-IC-3DHDMI4 | HDMI | 4 channels 3D HDMI input card | 4 | HDMI 3D | Up to 1920×1080/120Hz | ||
| DB-VWC2-TP-IC-3D4KHDMI2 | 4K HDMI | 4 channels 4K 3D HDMI input card | 2 | HDMI 3D | Up to 3840×2160/60Hz | ||
| DB-VWC2-TP-IC-4KHDMI4 | 4K HDMI | 4 channels 4K HDMI input card. | 4 | HDMI1.4 | Up to 3840×2160/30Hz | ||
| DB-VWC2-TP-IC-4KDP4 | 4K DP | 4 channels 4K DP input card. | 4 | DP1.1 | Up to 3840×2160/30Hz | ||
| DB-VWC2-TP-IC-IPH2* | RJ45 | 2 ports IP decoding card. | 2 | IP | Up to 3840×2160/30Hz/ 4000×3000/25Hz | ||
| DB-VWC2-TP-IC-4KIPH2* | RJ45 | 2 ports IP decoding card. | 2 | IP | Up to 3840×2160/30Hz/ 4000×3000/25Hz | ||
| DB-VWC2-TP-IC-4K60HDMI/DP2 | 4K60DP/HDMI | 2 channels 4K60 DP or HDMI input card, customization supported | 2 | DP1.2/HDMI2.0 | Up to 3840×2160/60Hz | ||
| DB-VWC2-TP-IC-4KHDBT4 | RJ45 | 4 channels 4K HDBaseT input card. | 4 | HDBT | Up to 3840×2160/30Hz | ||
| DB-VWC2-TP-IC-4K60HDMI1-HDR | 4K60 HDMI | 1 channel HDMI 4K60 input card, 12bit HDR supported | 1 | HDMI2.0 | Up to 3840×2160/60Hz | ||
| DB-VWC2-TP-IC-4KHDMI2-HDR | 4K HDMI | 2 channels 4K HDMI input card, 12bit HDR supported | 2 | HDMI 1.4 | Up to 3840×2160/30Hz | ||
| Output Cards | |||||||
| Order Code: | Port Type: | Description: | Ports Qty. | Signal Type: | Resolution: | ||
| DB-VWC2-TP-OC-4KHDMI4-HDR | 4K HDMI | 4 channels 4K HDMI output card, 12bit HDR supported | 4 | HDMI 1.4 | Up to 3840×2160/30Hz | ||
| DB-VWC2-TP-OC-J4KHDMI4 | 4K HDMI | 4 channels J-series 4K30 HDMI output card. | 4 | HDMI 1.4 | Up to 3840×2160/30Hz | ||
| DB-VWC2-TP-OC-JHDMI4 | HDMI | 4 channels J-series HDMI output card. | 4 | HDMI 1.3 | Up to 1920×1200/60Hz | ||
| DB-VWC2-TP-OC-JHDBT4 | RJ45 | 4 channels J-series HDBaseT output card. | 4 | HDBT | Up to 1920×1200/60Hz | ||
| DB-VWC2-TP-OC-J4KHDBT4 | RJ45 | 4 channels J-series 4K30 HDBaseT output card. | 4 | HDBT | Up to 3840×2160/30Hz | ||
| DB-VWC2-TP-OC-J4K60HDMI2 | 4K60 HDMI | 2 channels J-series 4K60 HDMI output card. | 2 | HDMI2.0 | Up to 3840×2160/70Hz | ||
| DB-VWC2-TP-OC-JDVI4 | DVI | 4 channels J-series DVI output card. | 4 | DVI | Up to 1920×1200/60Hz | ||
| DB-VWC2-TP-OC-4K60HDMI2-HDR | 4K60 HDMI | 2 channels 4K60 HDMI output card. | 2 | HDMI 2.0 | Up to 3840×2160/60Hz | ||
| DB-VWC2-TP-OC-NPC | RJ45 | 1 channel IP Network Preview card. | 1 | IP | / | ||
| Control Card | |||||||
| Order Code: | Port Type: | Description: | Signal Type: | Available chassis: | |||
| DB-VWC2-TP-CC | RJ45, RS232 | Control Card. | Control | 4U, 6U, 8U, 14U, 19U | |||
| Functional Card | |||||||
| Order Code: | Port Type: | Description: | Signal Type: | Available chassis: | |||
| DB-VWC2-TP-FC-CB | DVI | 4 channels DVI Confidence Monitoring Card | 4 | DVI | 4U, 6U, 8U, 14U, 19U | ||
| PSU | |||||||
| Order Code: | Power In: | Description: | Power Out: | Rate: | Available chassis: | ||
| DB-ACM-PSU-550W | AC 100-240V | PSU (Power Supply Unit.) | DC 12V | 550W | 4U, 6U, 8U, 14U, 19U | ||
