DB-VWC3
Born For LED Processing With Unparalleled Capabilities
Born For LED Processing With Unparalleled Capabilities

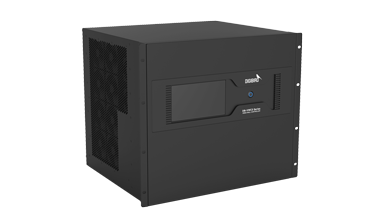

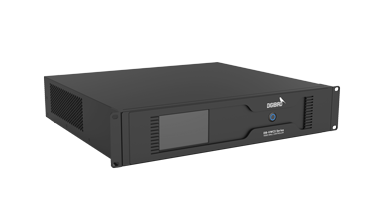

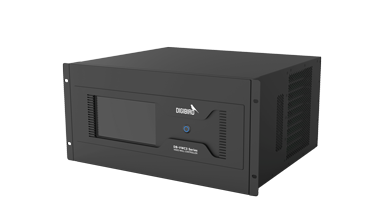

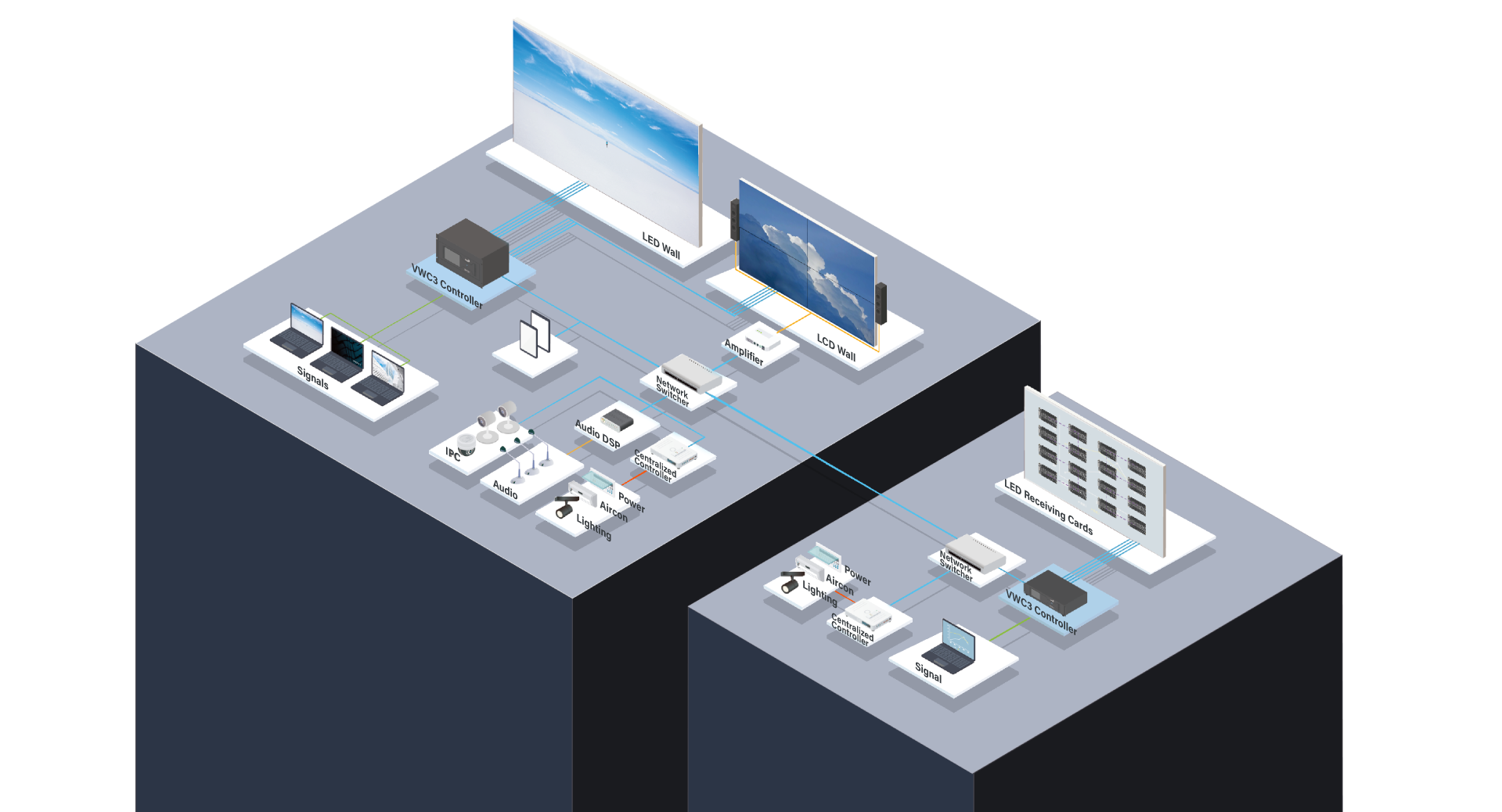

VWC3 is 3rd generation of video wall controllers designed and manufactured by DigiBird. Following the previous generation, VWC3 maintains hardware-based processing and applies DigiBird's self-developed FPGA piling structure. With the integration of a video wall controller, matrix switcher, and LED sending controller, VWC3 delivers unparalleled performance in various verticals such as the control room, command center, operating center, and broadcasting center.

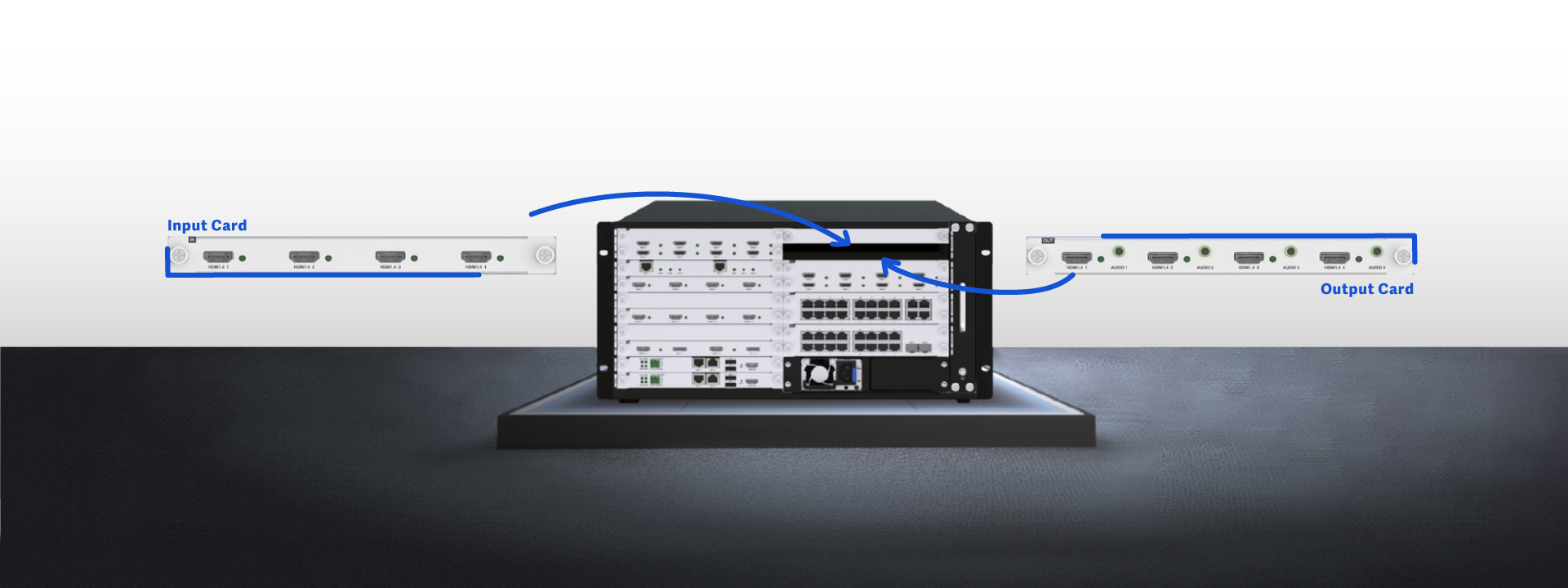

The adaptive slot can be configured as an input or output slot against demand.
It offers more flexibility for system configuration and reduces cost in the meantime.

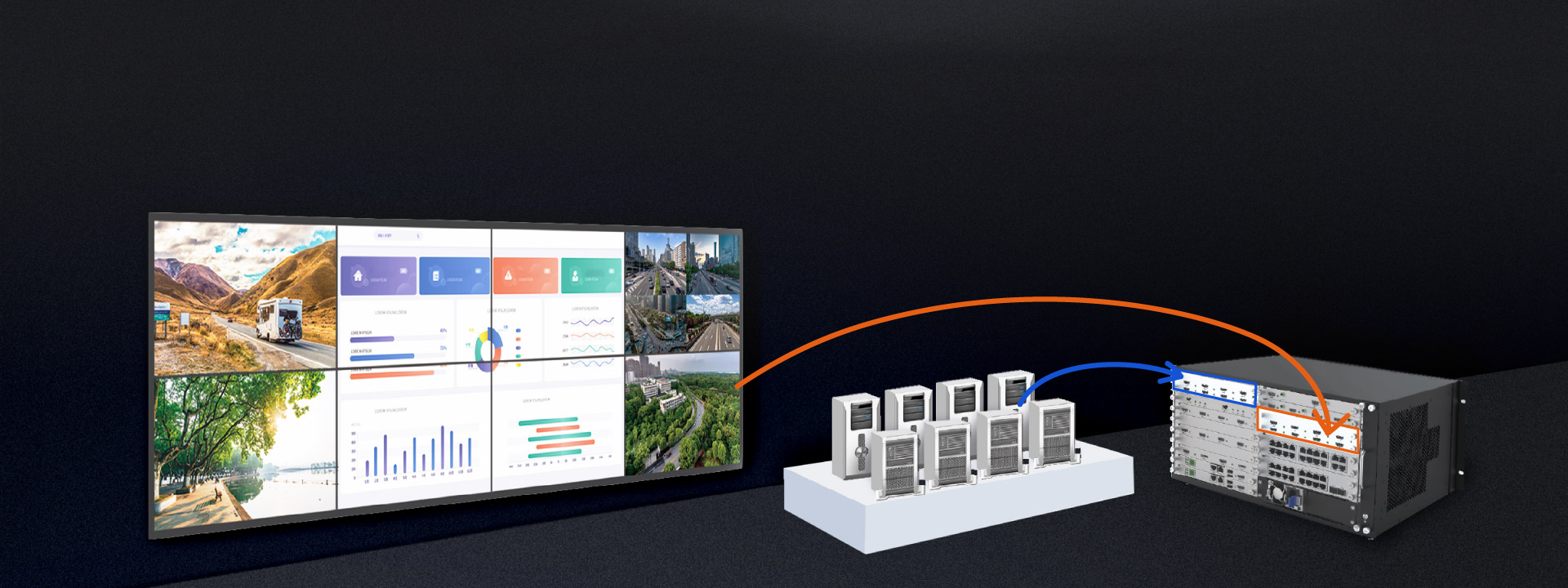

With options of 8x ports per card, VWC3 delivers more powerful processing capabilities
and offers more cost-effective options by reducing input card quantities and chassis size.

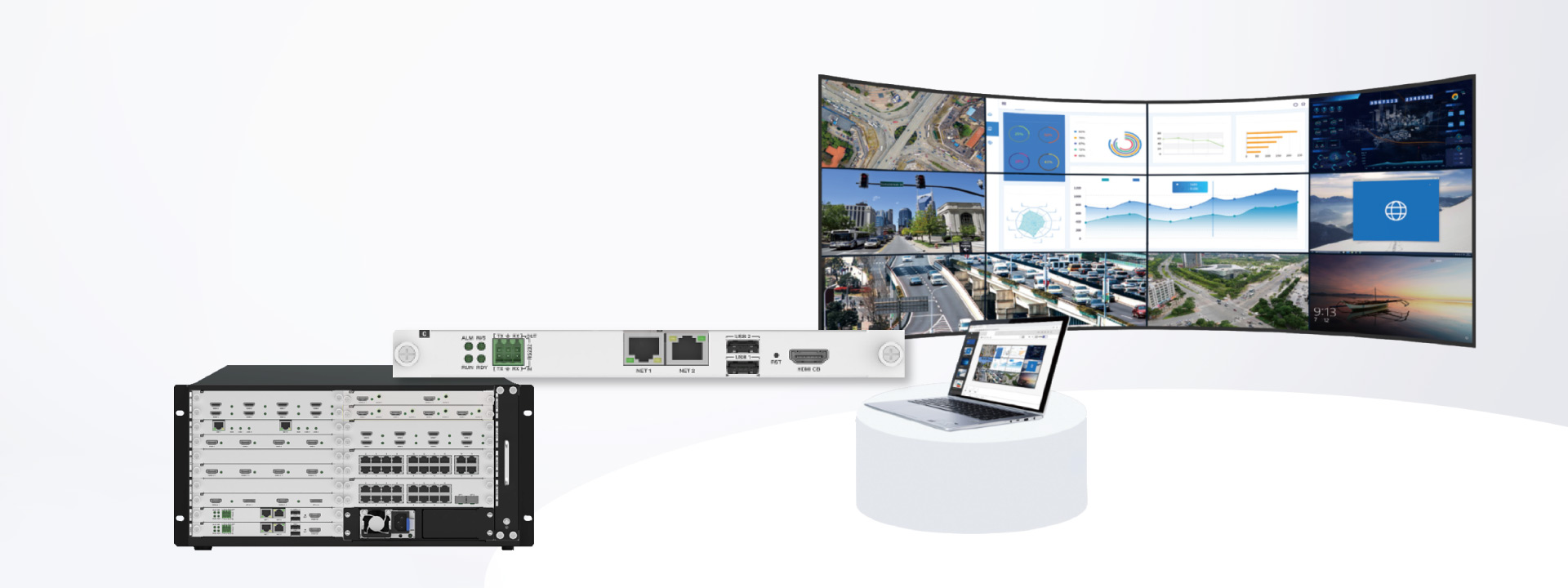

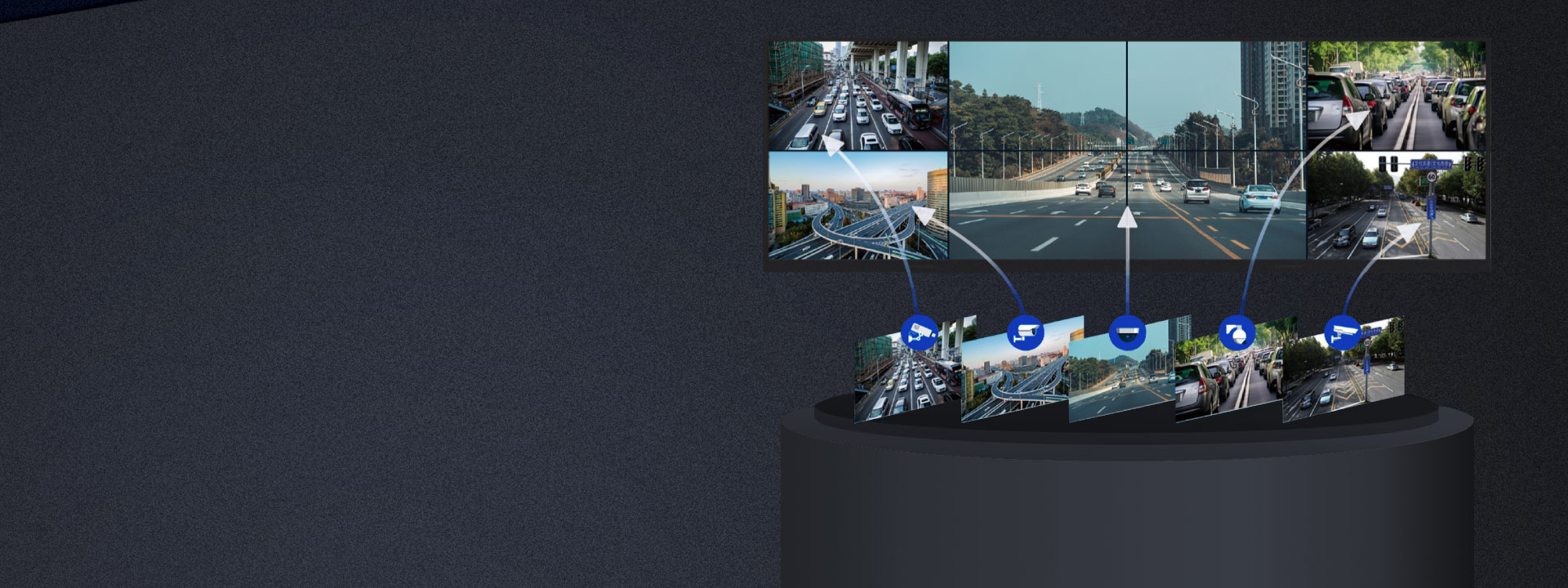

When there are numerous IP camera sources in the system,
VWC3 offers an intelligent way to manage them by working
with IP decoding card.
The operator can select a target signal with live preview and
display it on the wall despite the physical connection
between IP camera with decoding cards.

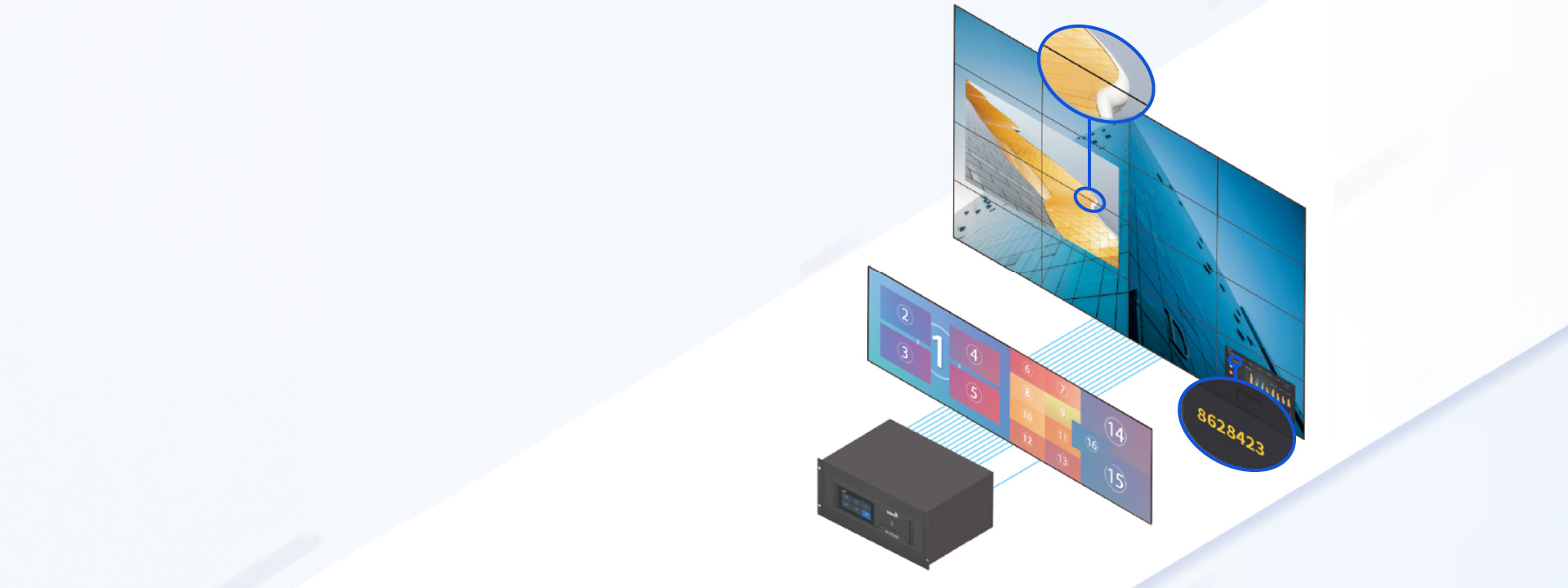

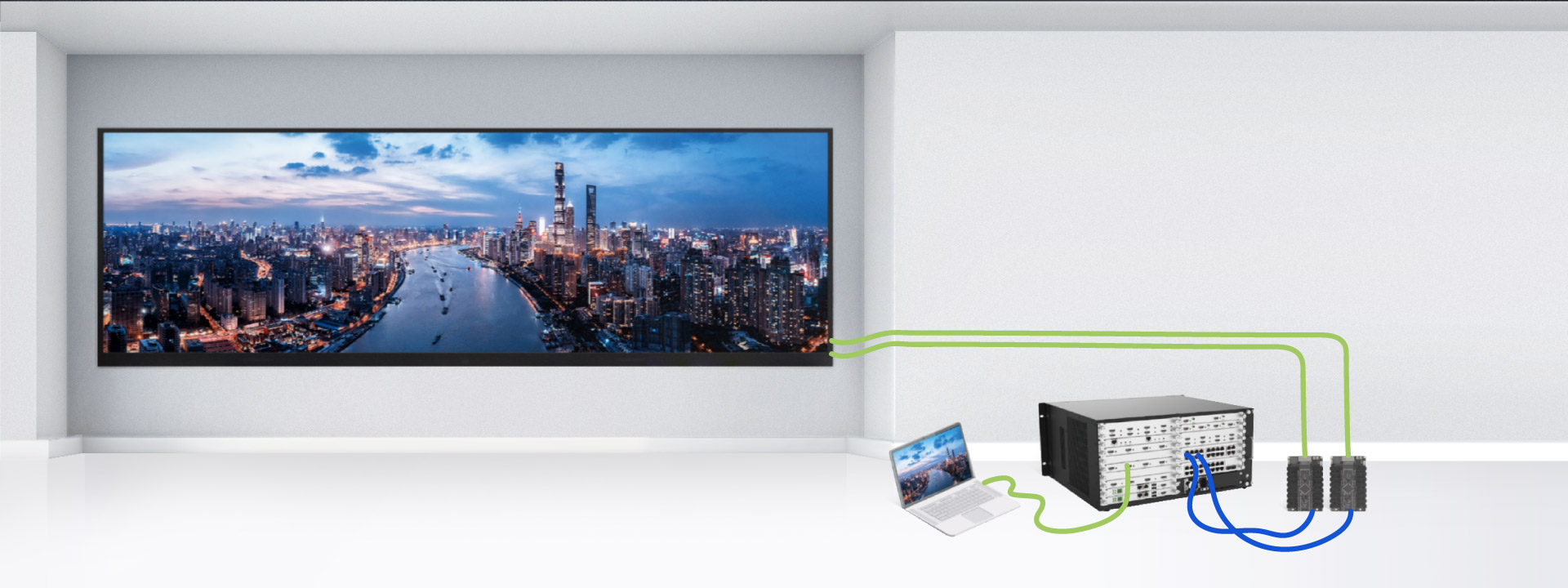

To meet growing demand of LED controllers,
DigiBird has launched LED transmitter.
This card will work with VWC3 chassis as output
card and connect to DigiBird receiving cards over
Cat5/6 cables to power LED wall directly.
VWC3 upgrades the control card by integrating preview card,
control card and confidence monitoring card into one
enhanced control card.

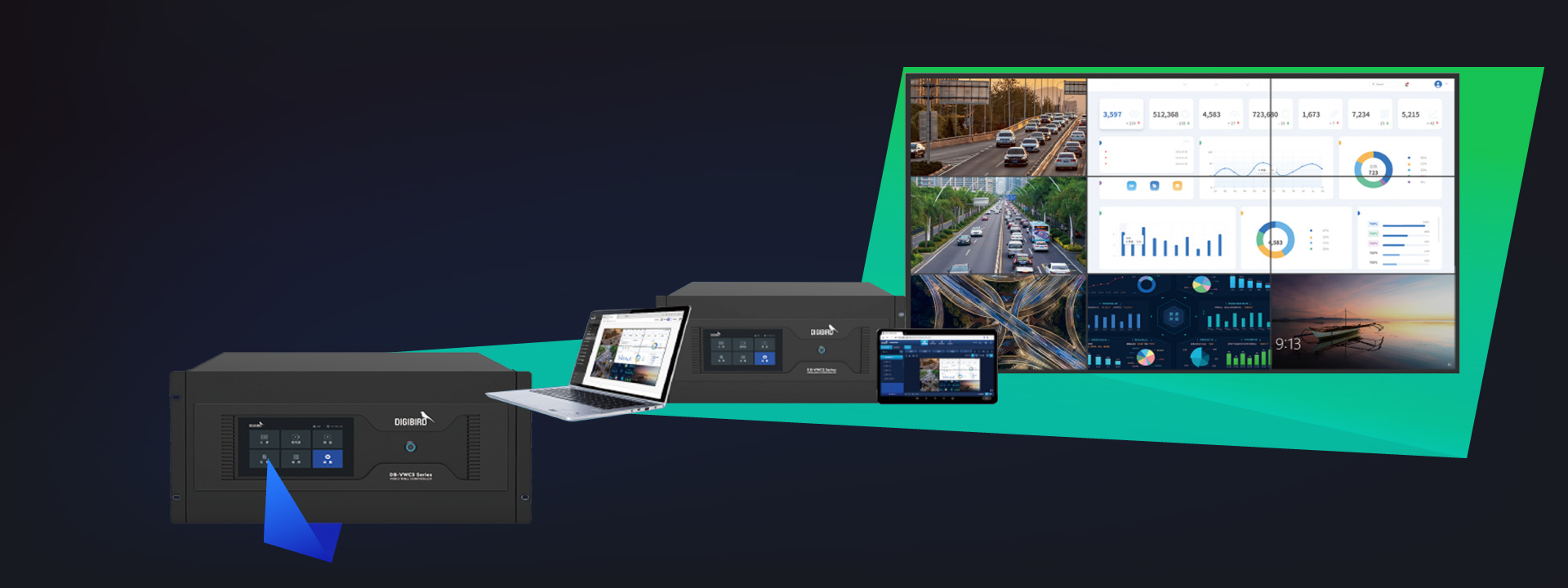

VWC3 controllers can be managed by controlling PC, android/iOS tablets through
a web browser, or by the front touch panel of the controller.
The controller supports multiple control methods simultaneously,
and any operations will synchronize with other control
platforms in real-time.

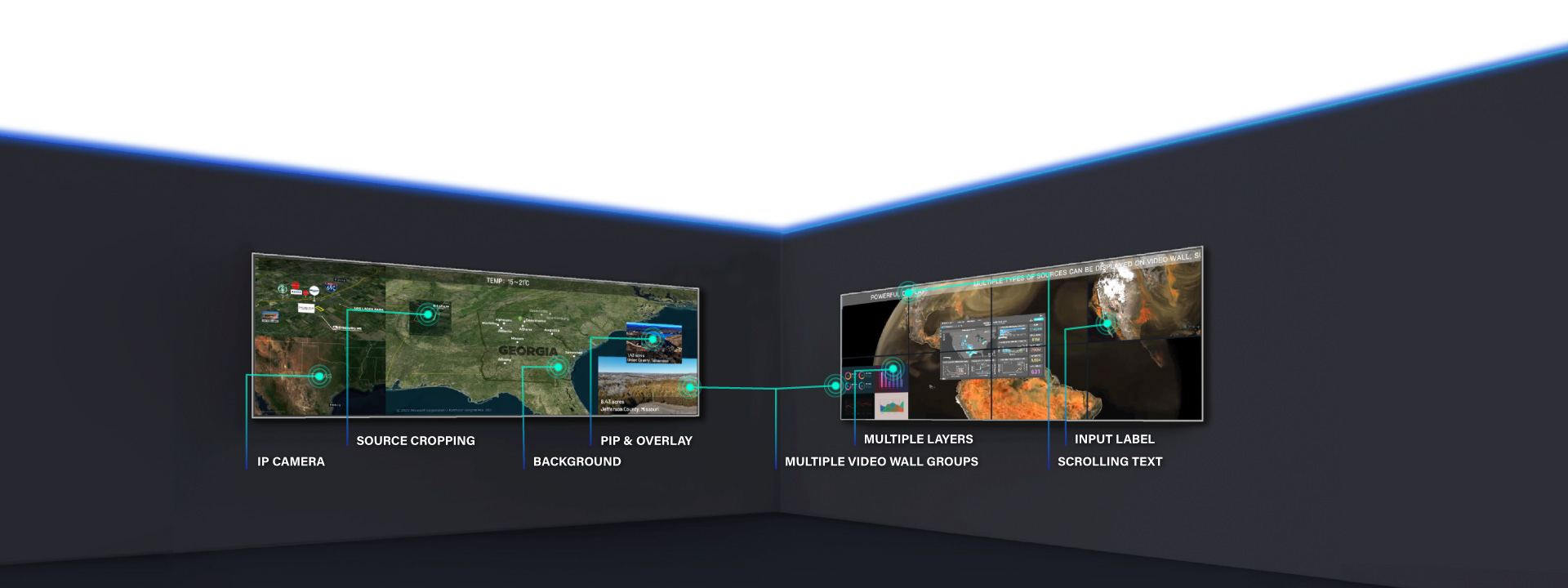

Multiple types of signals can be displayed on the video wall, such as IP cameras, cropped signals,
input labels, background images, scrolling text, and banners.

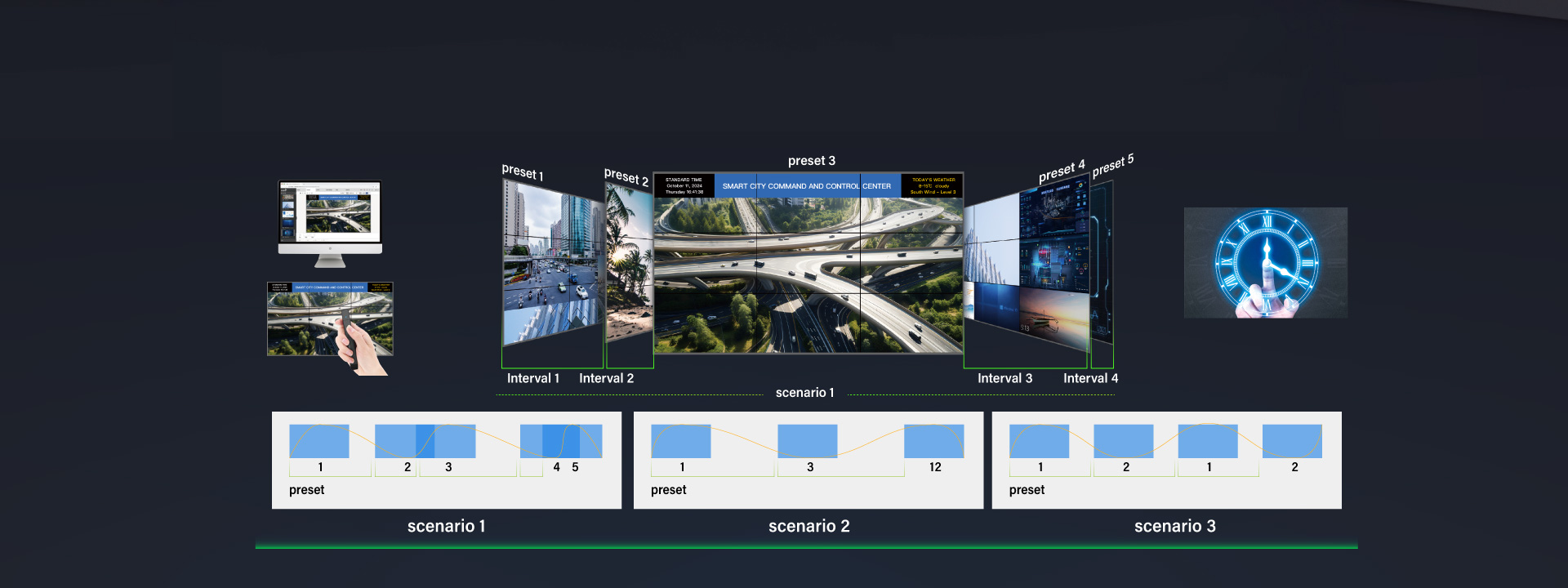

Configuration of video wall layout, matrix switching correlation, and scrolling text can be
saved as scenarios to be recalled by a single click upon request.

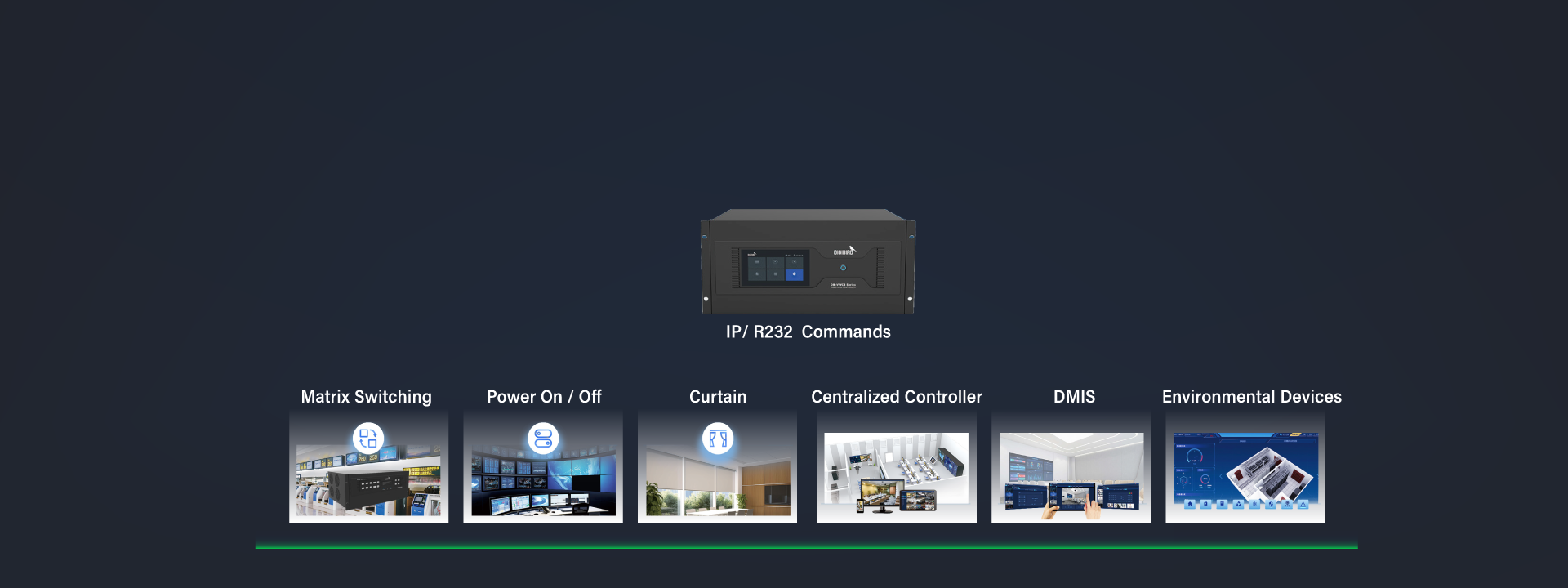

By providing control protocols, VWC3 running status and alarm information can be accessed by
3rd party controllers. Meanwhile, VWC3 can manage 3rd devices through IP or RS232.

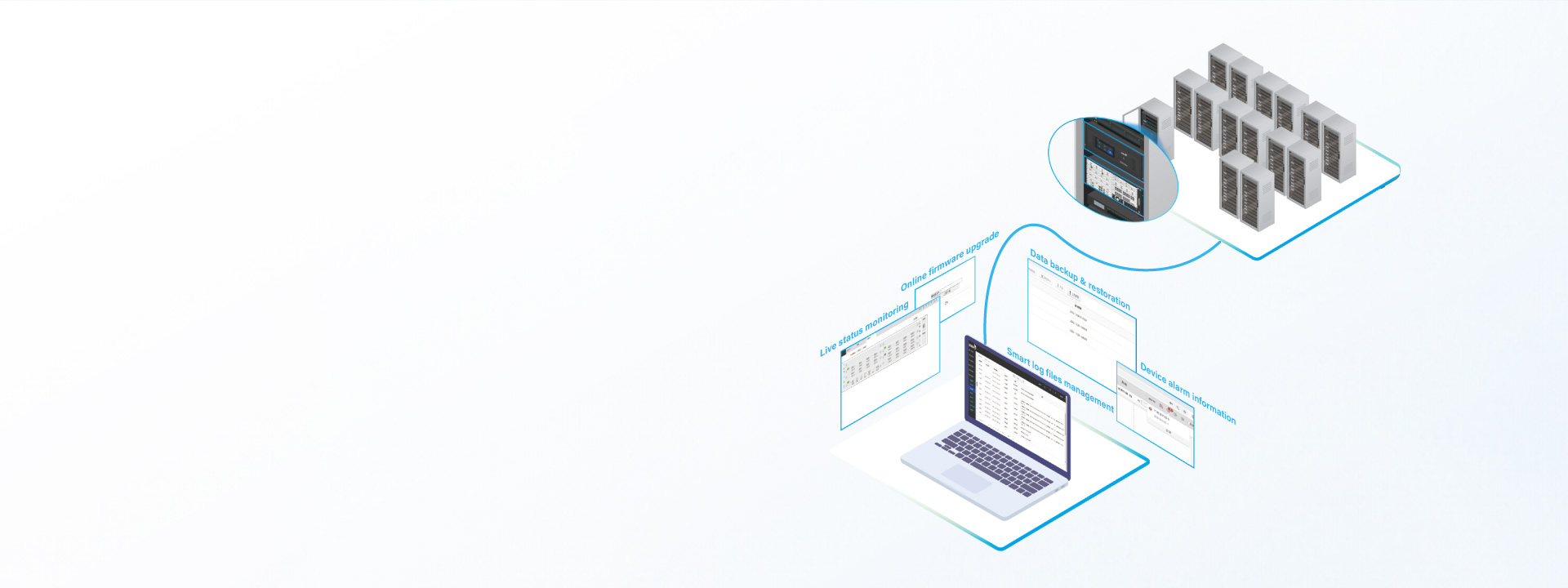

The maintenance combined with real-time monitoring, online upgrades,
data protection, fault alarms, and intelligent log management ensures
the stability, security, and efficiency of the system.

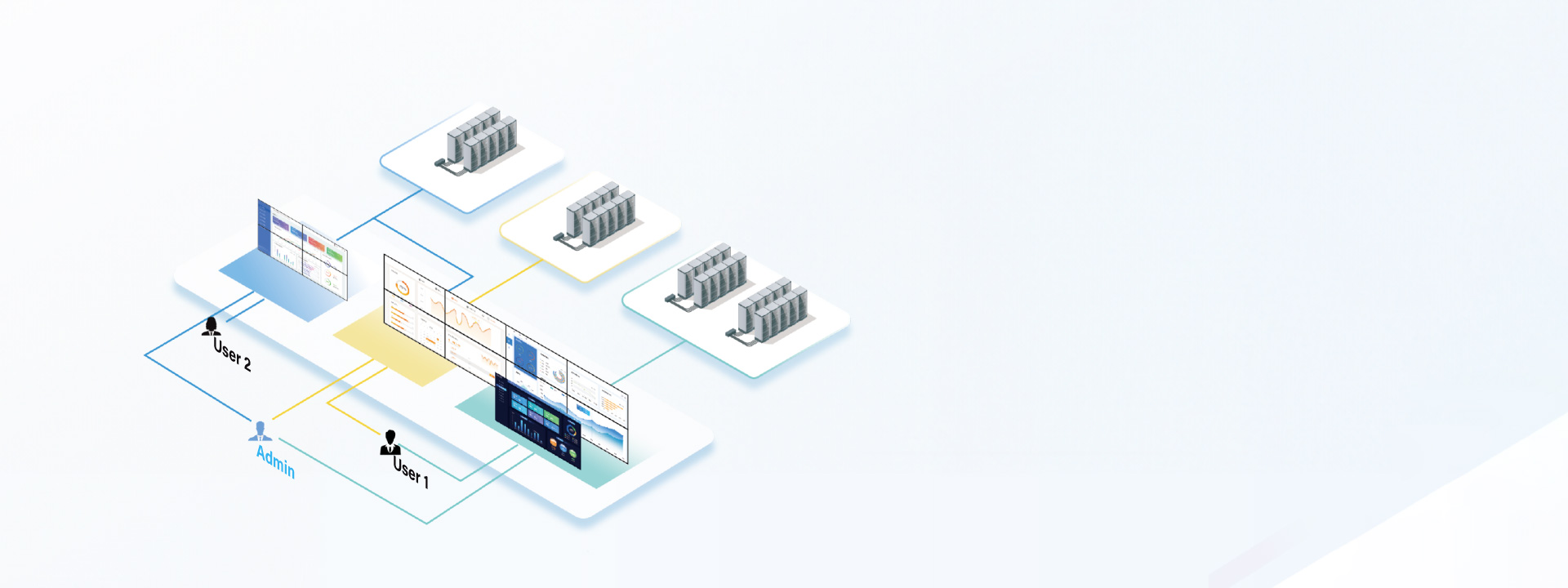

User access management is essential in mission-critical cases. VWC3 allows the
administrator to authorize certain users' access for video wall management based on user
role and business, i.e., authorities for a specific input, displays, functions, etc.
4K60 processing at 4:4:4, without any compression.
| Order Code | Size | Description | Input Slots | Output Slots | Adaptive Slots | Control Cards (Default+ Redundant) |
PSUs (Default+ Redundant) |
| DB-VWC3-H-FR2K | 2U | 2U Chassis, 3x input slots, 3x output slots, 1x hybrid slot | 3 | 3 | 1 | 1 | 1 |
| DB-VWC3-H-FR5K | 5U | 5U Chassis, 8x input slots, 8x hybrid slots | 8 | 0 | 8 | 1+1 | 1+1 |
| DB-VWC3-H-FR9K | 9U | 9U Chassis, 16x input slots, 2x output slots, 14x hybrid slot | 16 | 2 | 14 | 1+1 | 1+1 |
| Order Code | Port Type | Description | Ports Qty. | Slot Occupation | Resolution | ||
| DB-VWC3-H-IC-DVI8 | DVI | 8 channels SL-DVI input card. | 8 | 2 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-IC-HDMI8 | HDMI | 8 channels HDMI input card. | 8 | 2 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-IC-VGA4 | VGA | 4 channels VGA input card. | 4 | 1 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-IC-DVI4 | DVI | 4 channels DVI input card. | 4 | 1 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-IC-HDMI4 | HDMI | 4 channel HDMI input card. | 4 | 1 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-IC-4KHDMI2 | 4KHDMI | 2 channels 4K HDMI input card. | 2 | 1 | Up to 3840×2160/30Hz | ||
| DB-VWC3-H-IC-4KHDMI4 | 4KHDMI | 4 channels 4K HDMI input card. | 4 | 2 | Up to 3840×2160/30Hz | ||
| DB-VWC3-H-IC-IPH2 | IP | 2 channels IP input card. | 2 | 1 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-IC-4KIPH2 | 4KIP | 2 channels 4K IP input card. | 2 | 1 | Up to 3840×2160/30Hz | ||
| DB-VWC3-H-IC-4K60HDMI/DP1 | 4K60HDMI/DP | 1 channels 4K60 HDMI/DP input card. | 1 | 1 | Up to 3840×2160/60Hz | ||
| DB-VWC3-H-IC-4K60HDMI/DP2 | 4K60HDMI/DP | 2 channels 4K60 HDMI/DP input card. | 2 | 2 | Up to 3840×2160/60Hz | ||
| Order Code | Port Type | Description | Ports Qty. | Slot Occupation | Resolution | ||
| DB-VWC3-H-OC-DVI8 | DVI | 8 channels SL-DVI output card. | 8 | 2 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-OC-HDMI8 | HDMI | 8 channels HDMI output card. | 8 | 2 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-OC-DVI4 | DVI | 4 channels DVI output card. | 4 | 1 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-OC-HDMI4 | HDMI | 4 channels HDMI output card. | 4 | 1 | Up to 1920×1080/60Hz | ||
| DB-VWC3-H-OC-4KHDMI4 | 4KHDMI | 4 channels 4K HDMI output card. | 4 | 1 | Up to 3840×2160/30Hz | ||
| DB-VWC3-H-OC-4K60HDMI2 | 4K60HDMI | 2 channels 4K60 HDMI output card. | 2 | 1 | Up to 3840×2160/60Hz | ||
| DB-VWC3-H-OC-4K60DP2 | 4K60DP | 2 channels 4K60 DP output card. | 2 | 1 | Up to 3840×2160/60Hz | ||
| DB-VWC3-H-OC-LT-N16F2 | RJ45, Fiber | 16 ports RJ45 + 2 ports Fiber output card. For LED | 16+2 | 2 | Up to 3840×2160/60Hz | ||
| DB-VWC3-H-OC-LT-N20 | RJ45 | 20 ports RJ45 output card. For LED | 20 | 2 | Up to 3840×2160/60Hz | ||
| Order Code | Port Type | Description | Signal Type | Available Chassis | |||
| DB-VWC3-H-CC | RJ45, RS232 | Control Card | Control | 2U, 5U, 9U | |||
| DB-VWC3-H-CC-PV | RJ45, RS232 | Control Card + Preview Card | Control + Preview | 2U, 5U, 9U | |||
| Order Code | Power In | Description | Power Out | Rate | Available Chassis | ||
| DB-ACM-PSU-550W | AC 100-240V | PSU (Power Supply Unit) | DC 12V | 550W | 5U, 9U | ||
